A Tractor Concrete Pump is a smart solution for construction teams that need flexibility, efficiency, and cost control. It is especially useful in rural areas, small building projects, and job sites with limited access. By combining a tractor with a concrete pumping system, this machine eliminates the need for additional towing equipment and simplifies the entire concrete pouring process. For contractors who want to improve productivity without increasing costs, this equipment offers a practical and reliable option.

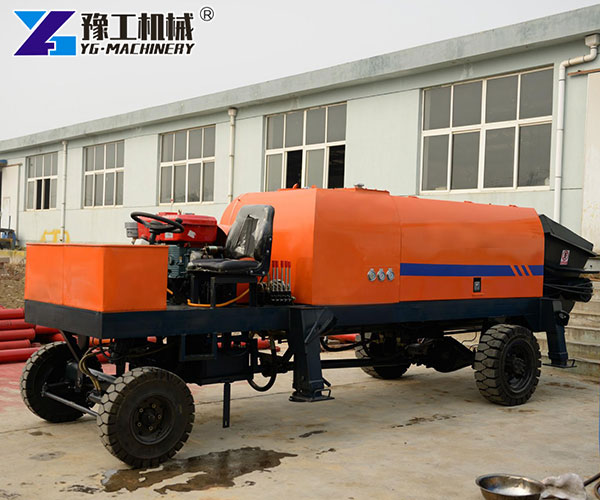

What Is A Tractor Concrete Pump
A Tractor Concrete Pump is a concrete delivery machine powered by a tractor. It uses a hydraulic system to push concrete through pipelines directly to the pouring point.
How It Works
- The tractor provides power to the hydraulic system
- The pumping system moves concrete through pipelines
- Concrete is delivered continuously to the construction area
Difference From Traditional Pumps
- No independent diesel engine required
- Lower fuel consumption and maintenance costs
- Easier to move between job sites
Who Should Use It
- Small contractors
- Rural construction teams
- Builders handling small to medium projects
Compared with traditional equipment, this machine is simpler, more flexible, and easier to manage.
Tractor-Mounted Concrete Pump: Technical Specifications
| Pumping Performance | Maximum Theoretical Output | 40 m³/h (Dual high/low pressure adjustable) |
| Maximum Outlet Pressure | 11 MPa | |
| Maximum Horizontal Conveying Distance | 300 m | |
| Maximum Vertical Conveying Height | 90-100 m | |
| Maximum Allowable Aggregate Size | ≤30 mm (Suitable for both fine stone & standard concrete) | |
| Power System | Power Type | Electric: 45 kW 3-phase asynchronous motor; Diesel: 56/62 kW diesel engine (Tractor chassis version in the picture is diesel-powered) |
| Main Oil Pump Displacement | 112 mL/r | |
| Hydraulic Oil Tank Capacity | 300 L | |
| Fuel Tank Capacity (Diesel Version) | 90 L | |
| Structural Parameters | Delivery Cylinder Specification | Φ160×1000 mm |
| Discharge Outlet Diameter | Φ125 mm (Customizable to Φ150 mm) | |
| Hopper Volume | 0.6 m³ | |
| Loading Height | 1.2 m | |
| Overall Machine Weight | Approx. 4.5 T (Tractor chassis version) | |
| Overall Dimensions (L×W×H) | Approx. 5.8×1.9×2.1 m | |
| Chassis & Mobility | Travel Type | Self-propelled tractor chassis, 4-wheel drive |
| Tire Specification | Off-road engineering tires, high ground clearance for strong passability | |
| Outrigger Type | Hydraulic telescopic outriggers for stable operation | |
| Additional Features | Distribution Valve Type | S-tube valve (Anti-blockage, easy maintenance) |
| High/Low Pressure Switch | Supported, adaptable to different pumping conditions | |
| Lubrication System | Fully automatic hydraulic lubrication | |
| Cleaning Method | High-pressure water cleaning | |
| Application Scenarios | Rural self-build housing, township infrastructure, small construction sites, off-grid remote operations |
Key Features of Tractor-Mounted Concrete Pump
The tractor-mounted concrete pump is designed to meet real construction needs, especially where mobility and ease of use are important.
Main Features
- Self-propelled tractor chassis
The machine can drive directly to the job site, even on rough or narrow roads - Dual-purpose power system
One diesel engine powers both movement and pumping, improving fuel efficiency - Compact and maneuverable design
As a mobile concrete pump machine, it works well in tight spaces such as rural houses or small job sites - Reliable pumping performance
Typical output of 30–60 m³/h and pressure of 10–15 MPa meets most small project needs - User-friendly operation
Simple controls allow quick learning, reducing training time - Low maintenance cost
Fewer components mean easier servicing and less downtime
These features make the machine highly practical for daily construction work.
Applications Of Tractor Concrete Pump For Rural Construction
A Tractor Concrete Pump is widely used in projects where access is limited and flexibility is required.
Common Applications
- Rural housing construction
- Farm infrastructure, such as irrigation channels and floors
- Small road and bridge construction
- Remote or hard-to-reach project sites
This machine solves a key problem: traditional concrete pumps cannot enter narrow roads or uneven terrain. That is why it is widely used as a concrete pump for rural construction.
Advantages Compared To Traditional Concrete Pumps
For small to medium projects, this equipment offers clear advantages over standard concrete pumps.
Lower Cost
- Lower purchase price
- Reduced fuel consumption
- Lower maintenance expenses
Better Mobility
- No need for external towing equipment
- Easy movement between job sites
- Suitable for rough and off-road conditions
Stronger Versatility
- Works in rural and non-urban environments
- Handles different types of concrete
Reduced Labor Requirement
- One operator can handle driving and pumping
- Less manpower needed on site
For many users, choosing a small concrete pump with a tractor is a cost-effective way to improve efficiency and reduce expenses.
When A Tractor Concrete Pump Is NOT The Best Choice
Although the Tractor Concrete Pump is highly practical, it is not suitable for all construction scenarios. Understanding its limits helps avoid wrong investment decisions.
Not Suitable For
- High-rise buildings require a high pumping height
- Large commercial projects with very high output demand
- Continuous large-volume concrete pouring
- Projects needing precise flow control
Other Limitations
- Not ideal for extreme terrain such as deep mud or very steep slopes
- Performance may be affected in very cold or harsh weather
In these cases, larger or more specialized concrete pumps are better choices. This honest understanding helps improve project efficiency and builds trust.
How To Choose A Tractor Concrete Pump
Selecting the right Tractor Concrete Pump depends on your project requirements.
Key Selection Factors
- Pumping capacity
Choose 30–40 m³/h for small jobs or 50–60 m³/h for larger rural projects - Power and pressure
Ensure the machine can meet your distance and height needs - Mobility and chassis design
Select strong tires and a stable structure for rough roads - Durability and maintenance
Look for wear-resistant parts and easy maintenance access - Budget
Compare models and consider the overall mini concrete pump price
Choosing the right machine ensures long-term performance and cost savings.
Common Questions About Tractor Concrete Pump
Is It Easy To Use?
Yes. The machine is designed with simple controls, and most operators can learn quickly.
What Concrete Can It Pump?
It works well with standard concrete mixes suitable for pumping.
Is It Suitable For Remote Areas?
Yes. Its mobility makes it ideal for rural and hard-to-reach locations.
How Many Workers Are Needed?
Usually, one operator is enough for basic operation.
Tractor Concrete Pump Manufacturer: YG Machinery
YG Machinery provides reliable and cost-effective construction equipment for global customers.
Why Choose YG
- Factory direct supply with competitive pricing
- Multiple models for different project needs
- Stable performance for long-term operation
- Rich experience serving global customers
- Full after-sales support with parts and technical guidance
Our Tractor Concrete Pump is designed to help contractors complete projects faster, reduce labor costs, and improve overall efficiency.
