Concrete placement is often one of the biggest challenges in construction. Moving concrete from the mixer to the pouring point takes time, labor, and cost. On many job sites, workers still rely on manual transport or simple tools, which slows down the project and increases risk. A Mobile Concrete Pump For Sale solves this problem in a simple and efficient way. It delivers concrete directly through pipelines to the exact location. This reduces labor, saves time, and improves construction quality. For contractors working on different sites, this machine offers flexibility and stable performance.
What Is A Mobile Concrete Pump?
A mobile concrete pump is a movable machine used to transport liquid concrete through pipes. It is designed for easy movement between job sites and can work in different environments.
Core Function
- Pump concrete directly to the pouring area
- Deliver concrete over long distances or at high heights
- Keep a continuous and stable flow
Compared With Traditional Methods
- Manual transport is slow and labor-intensive
- Crane lifting is less accurate and less efficient
- Mobile pumps improve speed and reduce waste
Why More Projects Use Mobile Pumps
- Faster construction progress
- Lower labor cost
- Better control of concrete placement
Because of these advantages, many contractors choose a Mobile Concrete Pump For Sale for modern construction work.
Key Technical Specifications of Mobile Concrete Pump
Electric Concrete Pump Parameter
| Model | YG-45 | YG-55 | Yg-90 | Yg-110 | Yg-180 |
| Transport Volume | 43 | 54 | 83/49 | 86/51 | 95/61 |
| Max pressure | 10 | 12 | 13 | 16 | 20 |
| Hydraulic system | open | open | open | open | open |
| Power(KW) | electric | electric | electric | electric | electric |
| Rotating speed | 1480 | 1480 | 1480 | 1480 | 1480 |
| Power(KW) | 45 | 55 | 90 | 110 | 90*2 |
| Distribution Valve | S valve | S valve | S valve | S valve | S valve |
| Cylinder Bore | 200 | 200 | 200 | 200200 | 200 |
| High/Low Voltage | No | No | No | No | No |
| Hydraulic Oil Tank Volume | 350 | 460 | 400 | 450 | 800 |
| Hopper Volume | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 |
| Loading height | 1280 | 1280 | 1380 | 1380 | 1430 |
| Dimensions(m) | 5.4*1.86*1.9 | 5.4*1.86*1.9 | 6*2.16*2.3 | 6*2.16*2.3 | 7*2.3*2.6 |
| Total weight(KG) | 4000 | 4500 | 6000 | 6150 | 7000 |
Diesel Concrete Pump Parameter
| Name | Diesel concrete pump | Diesel concrete pump | Concrete mixer with pump |
| Model | YG-130 | YG-145 | YG-37 |
| Transport Volume | 86/51 | 86/51 | 32 |
| Max Pressure | 16 | 16 | 10 |
| Hydraulic System | open | open | open |
| Power(KW) | Diesel | Diesel | Diesel |
| Rotating Speed | 2400 | 2400 | 1480 |
| Power(KW） | 130 | 145 | 30 |
| Distribution Valve | S valve | S valve | S valve |
| Cylinder Bore | 200 | 200 | 200 |
| High/Low Voltage | Yes | Yes | No |
| Hydraulic Oil Tank Volume | 860 | 860 | 170 |
| Hopper Volume | 0.8 | 0.8 | 0.6 |
| Loading Height | 1430 | 1280 | 1280 |
| Dimensions(m) | 6*2.16*2.3 | 6*2.16*2.3 | 5.1*2.1*3.1 |
| Total Weight(KG） | 6250 | 6250 | 3500 |
Key Advantages Of Mobile Concrete Pump
Higher Efficiency
Concrete is pumped continuously. This reduces waiting time and speeds up the project.
Lower Labor Cost
The machine replaces manual work. Fewer workers are needed on site.
Flexible Operation
The compact design allows easy movement. It works well in narrow and complex job sites.
Stable Performance
Advanced hydraulic systems provide steady pressure and smooth operation.
Application Scenarios Of Mobile Concrete Pump
A small concrete pump for sale is suitable for many types of projects.
Building Construction
- Residential houses
- Commercial buildings
Rural And Remote Projects
- Villages and farms
- Mountain construction
- Areas without stable power
Road And Bridge Projects
- Road paving
- Bridge foundation work
Infrastructure Construction
- Drainage systems
- Public engineering
Real Project Cases (Global Experience)
Real projects show the value of a Mobile Concrete Pump For Sale in different conditions.

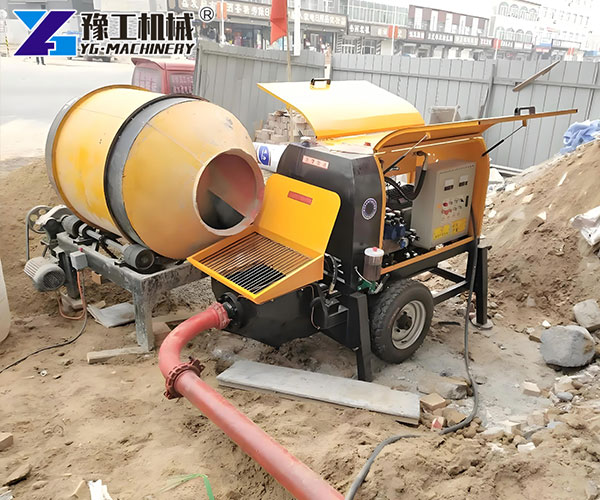

Kyrgyzstan – Road Construction Project
- Equipment: 50 m³/h diesel pump
- Before: manual transport + small mixer
- After: mobile pump solution
- Result:
- Labor was reduced from 10 to 4 workers
- Daily output increased from 70 m³ to 110 m³
- Construction time reduced by 30%

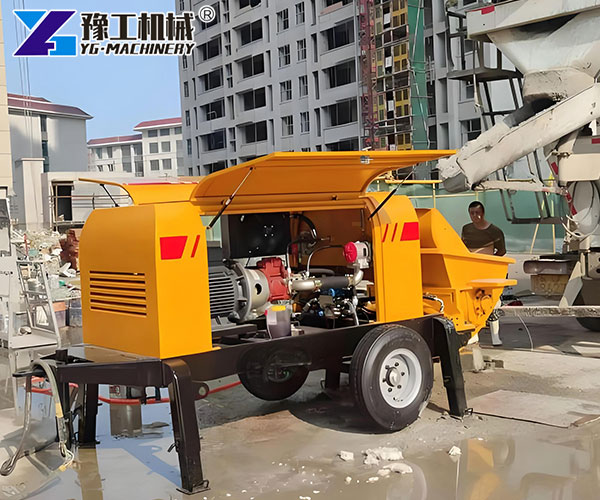

Peru – Urban Housing Project
- Equipment: electric concrete pump
- Challenge: noise control in the city
- Result:
- Low-noise operation
- Stable and clean pouring
- Reduced material waste
Mexico – Small Building Project
- Equipment: compact pump (30 m³/h)
- Challenge: limited space and budget
- Result:
- Easy transport between sites
- Lower equipment cost
- Faster project completion
Mobile Pump Vs Other Concrete Pumping Solutions
Choosing the right equipment depends on project needs.
| Type | Best For | Limitation |
|---|---|---|
| Mobile Pump | Flexible projects | Limited height |
| Boom Pump | High-rise buildings | High cost |
| Stationary Pump | Large continuous work | Not movable |
This comparison helps users select the most suitable solution.
When A Mobile Concrete Pump Is NOT The Best Choice
A mobile pump is not suitable for every project.
- High-rise buildings (over 20 floors)
- Large continuous pouring (over 500 m³/day)
- Fixed sites with permanent pipeline systems
In these cases, other equipment may be more efficient.
How To Choose The Right Mobile Concrete Pump
Choosing the right Mobile Concrete Pump For Sale depends on several factors.
Project Size
- Small: 30–40 m³/h
- Medium: 40–60 m³/h
- Large: 60 m³/h and above
Working Environment
- Remote areas → diesel
- Urban areas → electric
Budget
- Consider long-term savings
- Balance cost and performance
Concrete Type
- Fine concrete → standard pump
- Coarse materials → higher pressure needed
Cost Saving And ROI Analysis
Investing in a Mobile Concrete Pump For Sale can bring clear economic benefits.
Labor Saving
- Reduce workforce by 40–60%
- Lower daily labor cost
Time Saving
- Faster concrete delivery
- Shorter project duration
Return On Investment
- Small contractors: payback in 3–6 months
- Medium projects: faster return due to high usage
This makes the machine a cost-effective solution for long-term use.
Mobile Concrete Pump Price Guide
Understanding the portable concrete pump price helps buyers make smart decisions.
Price Factors
- Pump capacity
- Engine type
- Build quality
- Features and control system
Price Range
- Small models → lower cost
- Large models → higher investment but better output
How To Judge Value
- Focus on performance, not just price
- Check durability and service support
- Choose a reliable concrete pumping equipment supplier
Common Mistakes When Buying A Concrete Pump
Avoid these common mistakes when choosing a pump:
- Choosing too small capacity
- Ignoring power supply conditions
- Focusing only on price, not quality
- Not considering after-sales service
Understanding these points helps reduce risk and improve investment results.

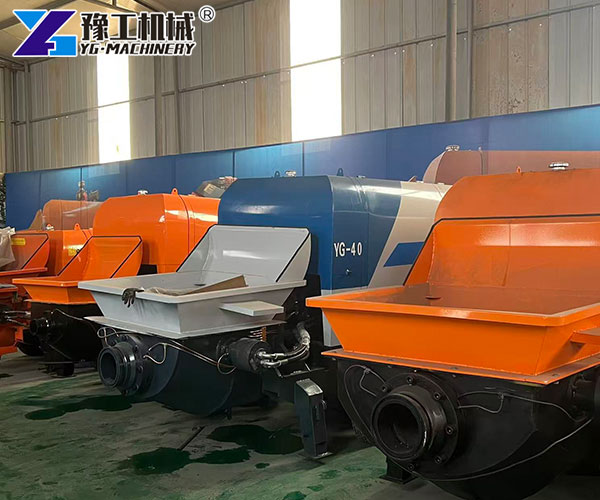

Why Choose Us As A Concrete Pump Supplier
As a professional concrete pumping equipment supplier, we provide reliable products and full support.
Certified Equipment Quality
- CE and ISO certified
- Strong structure and stable system
- Strict quality testing
Global Project Experience
- Exported to 80+ countries
- Used in Asia, South America, Africa, and the Middle East
- Proven performance in real projects
Complete Equipment Solutions
We also offer:
- Trailer concrete pumps
- Stationary concrete pumps
- Concrete placing equipment
After-Sales Support
- Remote technical support
- Installation guidance
- Fast response service
Spare Parts Supply
- Delivery within 3–7 days
- Easy replacement
- Long-term maintenance support
Product FAQs
What Size Concrete Pump Do I Need?
It depends on your project size. Small projects need 30–40 m³/h, while larger projects require higher capacity.
How Far Can A Concrete Pump Reach?
Most pumps can deliver up to 800 meters horizontally and 200 meters vertically.
Diesel Or Electric Concrete Pump?
Diesel is better for remote areas. Electric is better for urban projects.
How Much Does A Concrete Pump Cost?
The cost depends on capacity, engine type, and configuration.
Is It Easy To Maintain?
Yes. Regular cleaning and simple checks can help keep the machine running smoothly.
