Spider Cherry Picker

What Is a Spider Cherry Picker?

A spider cherry picker is a special type of aerial work platform designed to reach high places in narrow or uneven areas. It gets its name from the way its legs spread out like a spider. These legs give it excellent balance and make it safe on rough ground. The machine runs on tracks instead of wheels, which helps it move easily across dirt, grass, or slopes.

Compared to other cherry pickers, the spider cherry picker stands out for its flexibility and off-road ability. It can work where others can’t, both inside and outside buildings.

Contact us to get special offer now! WhatsApp/WeChat 008613837159132

Spider Cherry Picker Parameter

Model	YG-3	YG-5	YG-8
Specification	3t	5t	8t
Maximum working radius	8.83m×0.15t	14m×0.5t	16.5m
Maximum above-ground head	9.9m×0.7t	16.8m	18m
Winch device	Hook Speed	0-8m/min(4 rope)	12m/min(4 rope)
Rope diameter	φ8mm×45m	Φ11mm×80m	Φ11mm×80m
Telescopic system	Boom Type	5-section boom, pentagonal structure	5-section boom, pentagonal structure
Boom Length/Time	3.1m-9.2m/20sec	12.3m/54sec	12.3m/54sec
Up and down	Boom Angle/Time	0°~78°/13sec	0°~78°/13sec
Slew system	Slew Angle/Speed	0-360°continuous/60sec	0-360°continuous/38sec
Traction system	Walking Way	Hydraulic motor drives	Hydraulic motor drives
Walking Speed	0~2.5km/h	0~2.5km/h	0~2.5km/h
Grade Ability	(25°)36%	(25°)36%	(25°)36%
Operating system	Operation type (Boom/outrigger)	Manual operation, manual walking(remote control option)	Manual operation, manual walking(remote control option)
Operating characteristics	Manual operation, remote control	Manual operation, remote control	Manual operation, remote control
Transport parameters	L*W*H(mm)	2950*980*1560	5000*1500*1900
Total weight(kg)	2700	6200	7200

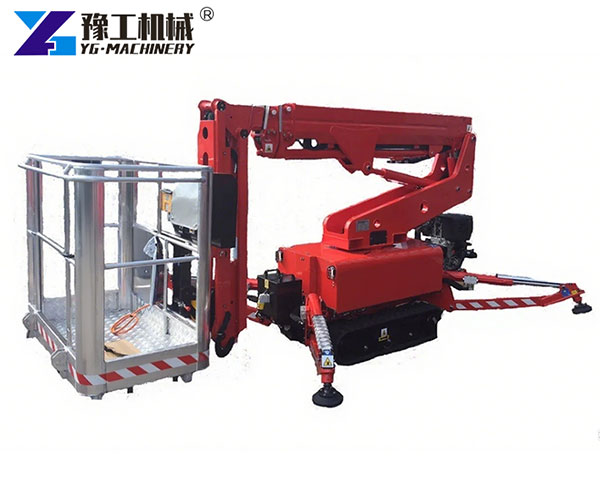

Key Structural Features of a Tracked Spider Lift

Our tracked spider lift is built for strength and flexibility. It includes:

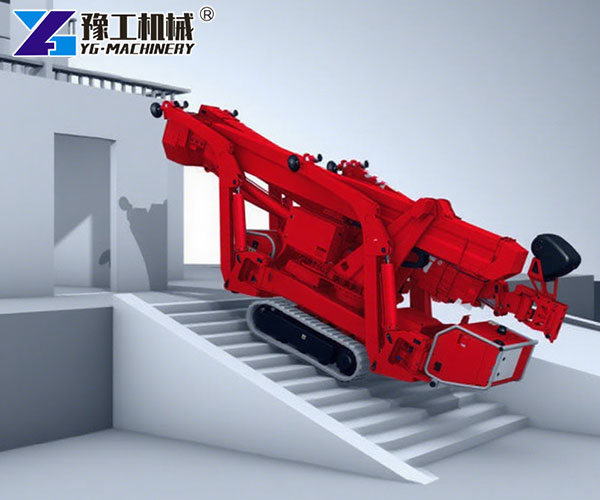

• A rubber track chassis that moves easily over mud, gravel, and slopes
• Telescopic boom arms combined with articulated joints for more reach

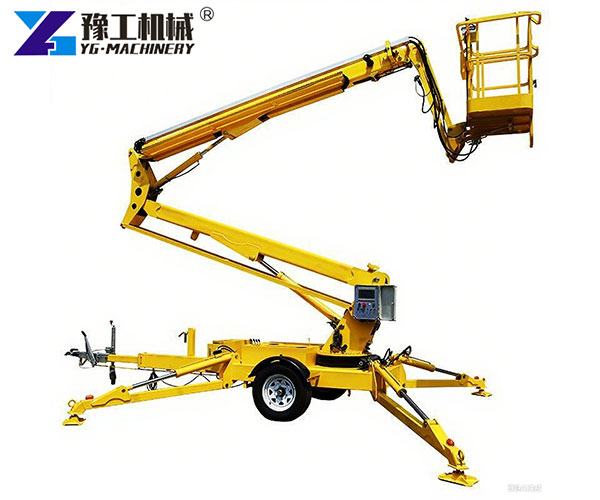

• Foldable design that fits through standard doors and elevators
• Light frame weight that reduces floor pressure in indoor jobs

Thanks to its structure, this lift is ideal for both indoor and outdoor work.

Outstanding Advantages of Spider Cherry Pickers

The spider cherry picker offers several practical advantages for high-access jobs:

• Works well on uneven ground and where floor weight is limited
• Has a wider outreach compared to scissor lifts or truck mounts
• Easy to operate with a wireless remote control
• Can reach heights of 20–30 meters or more with high stability

Whether in a forest or a theater, it performs reliably and safely.

Ideal Work Environments

The spider cherry picker for sale is used in many special environments:

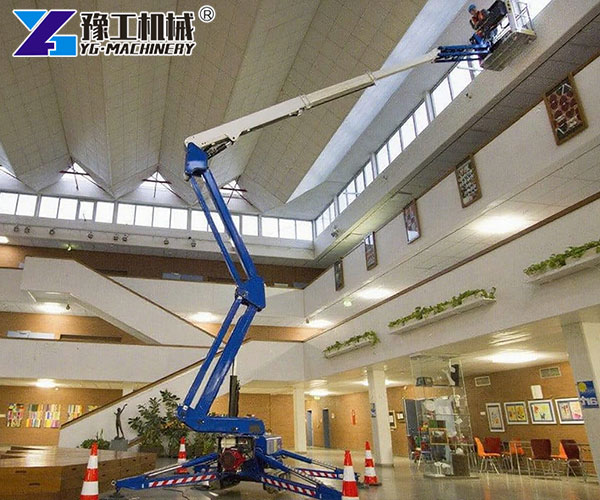

• High ceilings in churches, theaters, or shopping centers

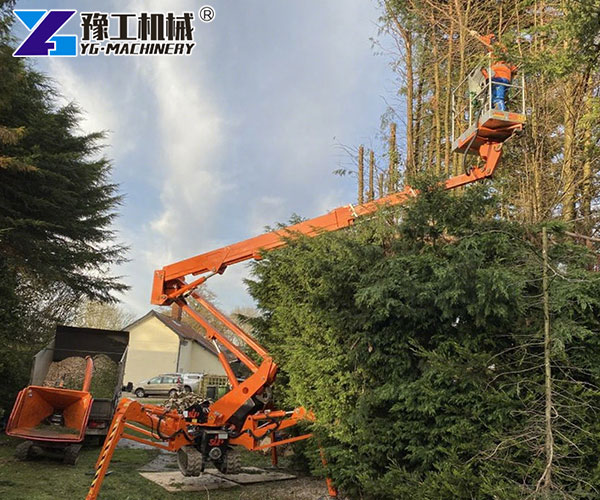

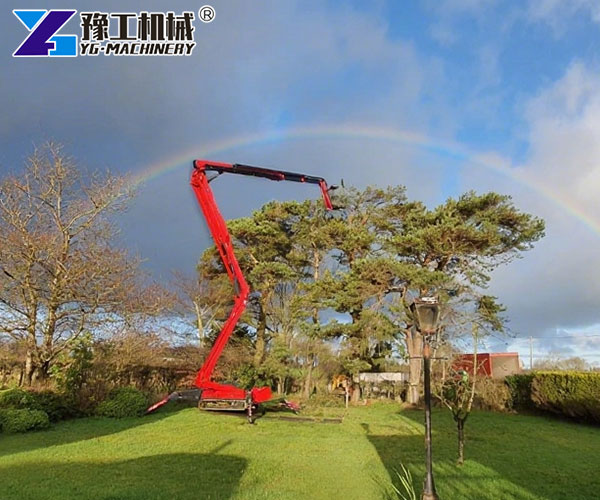

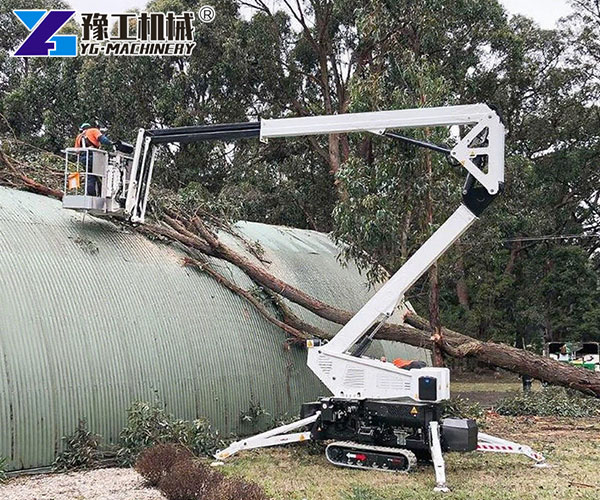

• Tree cutting and landscape maintenance in forestry
• Billboard repair or inspection work on the cliffsides
• Interior construction at ports, docks, or complex buildings

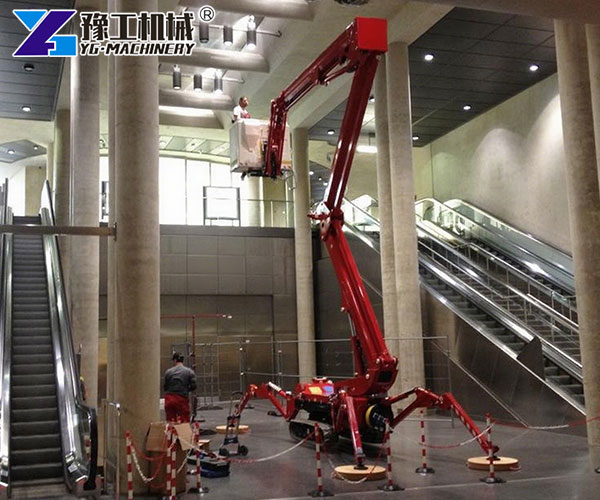

Its size and leg design makes it perfect for narrow and tricky job sites.

Advanced Safety Design

Our spider cherry picker includes multiple safety systems:

• Auto-leveling on sloped ground
• Emergency stop button and remote error alerts
• Anti-tip and anti-collision technology
• Meets CE or ANSI safety certification

Operators can work at height with peace of mind.

Why Choose Our Tracked Spider Lift?

Our tracked spider lift for sale is trusted by rental companies and project teams. We offer:

• A range of models for different height needs
• Factory delivery with optional training
• Simple design for easy service and maintenance
• Fast parts supply and remote tech support

We help you get the job done with safe and efficient machines.

Common Questions about the Spider Cherry Picker

Q1: Can a spider cherry picker be used indoors?
Yes, its narrow body and rubber tracks allow indoor access. It fits through most double doors.

Q2: Does it need a license to operate?
In many countries, no license is required for models under a certain height. Always check local rules.

Q3: Can it be transported easily?
Yes, the lift is compact and can be loaded on a trailer or small truck.

We offer high-performance spider cherry pickers with tracked chassis, remote control, and top safety features. Choose from different models and get fast delivery with full after-sales support. Contact us now for your custom quote.
