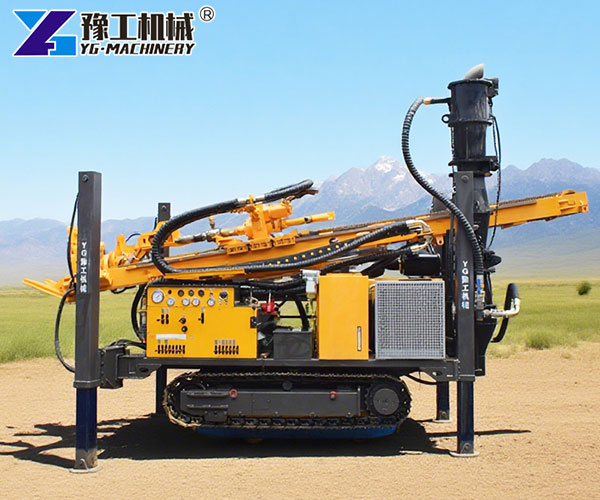

Our RC Drill Rig is a powerful drilling machine designed for fast and clean sampling. It works with a special reverse circulation system. The drilling principle is simple but effective. A dual-wall drill pipe sends compressed air down the outer pipe. The air pushes the cuttings back through the inner pipe and brings samples directly to the surface.
Unlike DTH drilling, reverse circulation does not require drilling mud. It reduces pollution and increases sample purity. This is why the RC Drill Rig is widely used in professional mining exploration.
Core Features Of YG RC Drilling Machine
Our RC drilling machine is designed to perform well in tough outdoor environments. It has several strong features that help users finish drilling tasks faster and more safely.
Key features include:
A high-power engine paired with a strong hydraulic system
Dual-wall drill pipes that support fast reverse circulation
High penetration rate even in hard rock formations
Clean sample recovery with low contamination

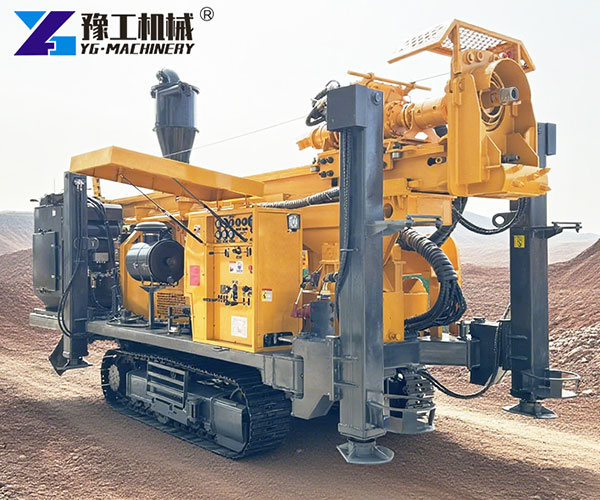

A heavy-duty chassis that works well in rough field conditions
Easy maintenance design with standard parts for quick replacement
These features allow the machine to keep a stable speed and sample quality even during long working hours.
Product Parameters Of YG Reverse Circulation Sampling Rig
Model
YG150RC
Drill rig weight(crawler-mounted)
kg
9000
Engine Power
kW
125
Length × Width × Height (normal)
mm
6750x2200x2950
Ambient Temperature Range
°C
-10～38
Drill Ability
Nominal Drill Depth
m
150
End-hole Diameter
mm
110-250
Drill angle
°
-10-90
Horizontal hole height
m
1.85-2.8
Drill head output
Max Output Torque
N.m
8000
Output Rotation Speed(continuity)
rpm
30 / 60 54/108rpm
Output Rotation Speed(interval)
rpm
62 / 124 105/210rpm
Feeding
mm
3500
Thrust Force
kN
45
Lifting Capacity
kN
65
Pipe-puller Device Output
Output Rotation Speed
rpm
40
Max Output Torque
N.m
30000
Hole-through Diameter
mm
370
Auxiliary Winch
Pull Force of the First Layer
kN
11
Rope Diameter
mm
14
Rope Capacity
m
60
Engine(Cummins)
6BTA5.9-C125
Power
kW
125
Rotary Speed (Max.)
rpm
2200
Track Chassis Base
Walk Speed
Km/h
1.2
Unit Pressure
MPa
＜0.05
Climb Ability
°
≥20
Advantages Compared With DTH Drilling
RC drilling technology offers several clear advantages over traditional DTH drilling. Many mining companies choose RC because it improves sample reliability and reduces project cost.
Main advantages include:
Faster sample return speed, even in deep holes
Higher sample purity for accurate mineral evaluation
Lower operating cost due to stable and efficient air use
A stronger drilling system that ensures a long working life
Suitable for mining exploration, water projects, and geotechnical drilling
These strengths make the RC Drill Rig a valuable tool for professional drilling teams.
Application Scenarios Of A Reverse Circulation Drilling Rig
Users choose a reverse circulation drilling rig when they need accurate, fast, and clean samples from different depths. Some common situations include:

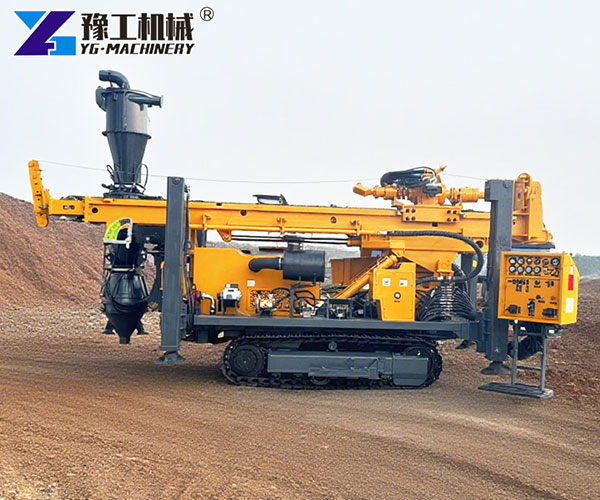

Mineral exploration that requires quick and precise rock samples

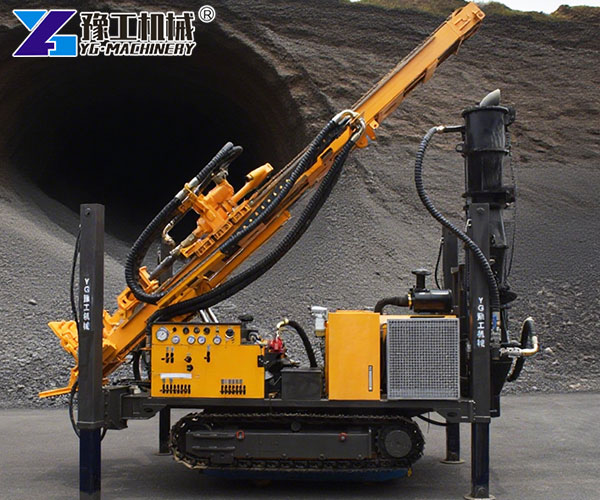

Geological mapping in hard or mixed rock layers

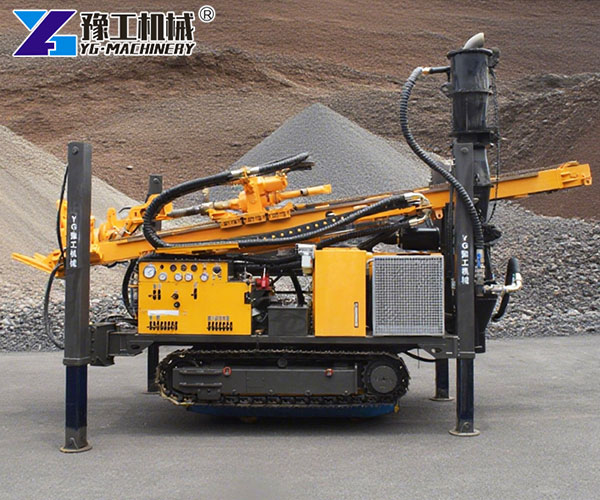

Mining companies that need high-quality samples for lab analysis
Construction projects that require deep drilling with strong stability
Projects that want to control costs by reducing air use and contamination
These needs show why RC drilling is now a preferred method for modern exploration projects.
Why Choose YG RC Drill Rig
YG RC drilling equipment is trusted by global buyers because it performs well in real mining sites. Many users report stable performance and high productivity.
Reasons buyers choose our rig include:
Reliable components with strict factory testing
Full technical support, including training and remote service
Fast spare parts supply to support global users
Export experience in Africa, South America, and Southeast Asia
We design our rigs for real working demands, not laboratory conditions.
We provide full support to help international buyers use the RC Drill Rig safely and efficiently. Our service includes:
Pre-sales consultation based on rock type and drilling conditions
Professional drilling solutions and model recommendations
Shipping support, including packaging and customs documents
On-site or remote commissioning guidance
Long-term after-sales service and maintenance assistance
This support helps customers start their projects quickly and reduce risk.
Customer Case
A mining company in Africa used our RC Drill Rig for a large mineral exploration project. The machine delivered fast penetration speed and clean samples. The team reported that sample purity increased, and the drilling time was reduced by 30%. They later purchased additional rigs for deeper holes in the same region.
Frequently Asked Questions
Q1: What depth can the RC Drill Rig reach? It depends on the model. We offer multiple depth options for different projects.
Q2: Are spare parts easy to get? Yes. We provide fast global spare parts support.

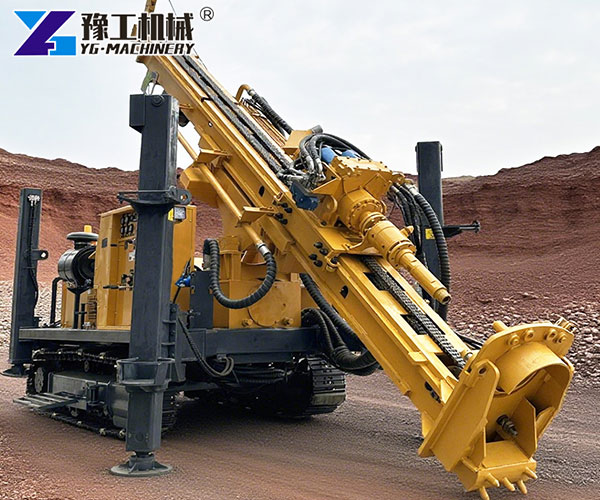

Q3: Can the rig work in hard rock? Yes. The strong hydraulic system and high-power design allow it to handle hard formations.
Q4: How clean are the samples? Samples are clean and dry because cuttings return through the inner pipe with little contamination.
Q5: Do you offer training? Yes. We provide online or on-site training based on customer needs.
