Pile driving machines play a vital role in foundation construction, solar power installation, and road safety projects.
Due to differences in soil conditions, pile materials, and construction requirements, pile driving machines vary significantly in their working methods, power systems, and functional applications.
Understanding the different types of pile driving machines helps contractors and project planners select the most suitable piling solutions, thereby improving overall construction efficiency.
1. Types of Pile Driving Equipment by Construction Method
Based on how piles are installed into the ground, pile driving machines can be classified into ramming, drilling, and screwing types.
1.1 Ramming Type Pile Driving Machine (Hydraulic Hammer)
Ramming pile driving machines use a hydraulic hammer to drive piles into the ground through impact or pressure.
In solar and infrastructure projects, this working method is widely used in solar pile ramming machines, which are designed to deliver stable hammering force for fast pile installation.
Main features:
- Uses hydraulic hammer force for pile installation
- No pre-drilling required under most soil conditions
- Strong penetration capability
Typical applications:
- Highway guardrail installation
- Infrastructure and building foundations
- Projects requiring fast pile driving speed
Hydraulic hammer pile drivers are widely used due to their simple structure, high efficiency, and strong adaptability to different soil conditions.
1.2 Drilling Type Pile Driving Machine (Hydraulic Drilling)
Drilling pile driving machines install piles by drilling holes first, and then placing or driving piles into the ground.
Among all pile driving machine types, drilling systems provide better control in complex geological conditions.
This working method is commonly used in rotary pile drilling rigs, especially when dealing with hard soil or rocky ground conditions.
According to the drilling tool used, this type mainly includes two categories:
Auger Drilling Pile Driving Machine (Spiral Drill Rod)
- Uses spiral auger rods for soil drilling
- Suitable for soft to medium soil layers
- Provides accurate hole positioning
This drilling method is frequently applied in solar piling machine systems, where precise pile positioning is required for photovoltaic structures.
DTH Drilling Pile Driving Machine (Down-the-Hole Drilling)
- Uses a DTH hammer for drilling
- Suitable for hard soil, gravel, and rock layers
- Offers higher drilling efficiency in difficult geological conditions
Compared with auger drilling, DTH drilling pile driving machines perform better in rocky or dense soil environments, especially in utility-scale solar projects.
1.3 Screwing Type Pile Driving Machine (Ground Screw Installation)
Screwing pile driving machines install piles by rotating ground screws directly into the soil.
Advantages:
- No impact or vibration
- Minimal environmental disturbance
- Fast installation and easy removal
This piling method is commonly applied in photovoltaic pile driver systems used for modular and adjustable solar foundations.
2. Types of Pile Driving Equipment by Power System
Another important way to classify pile driving machines is by their power source, which directly affects machine configuration and working conditions.
2.1 Hydraulic Motor Pile Driving Machines
Hydraulic systems are widely used in modern pile driving equipment.
- Hydraulic drilling pile drivers require a connection to an air compressor
- Hydraulic ramming pile drivers generally do not require an air compressor
- Provide strong and stable power output
Hydraulic pile driving machines are suitable for medium to heavy-duty construction projects and harsh working environments.
2.2 Electric Motor Pile Driving Machines
Electric motor-driven pile driving machines are mainly used in auger drilling-type pile drivers.
This type of pile driving machine is often selected for light-duty piling tasks or areas with strict environmental requirements.
Note: In practical applications, both hydraulic and electric systems are typically powered by diesel engines.
3. Types of Pile Driving Equipment by Application
From a functional perspective, pile driving machines can also be classified according to their specific application scenarios.
3.1 Solar Pile Driving Machines
Solar pile driving machines are designed specifically for photovoltaic power plant construction.
Working methods include:
- Ramming with a hydraulic hammer
- Drilling using auger or DTH systems
Because soil conditions in solar farms vary widely, solar pile driving machines often combine multiple piling methods to achieve higher construction efficiency.

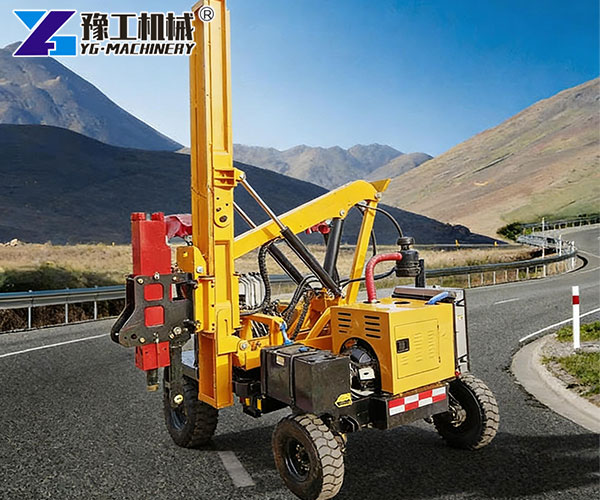

3.2 Guardrail Pile Driving Machines
Guardrail pile driving machines are mainly used for roadside and highway safety barrier installation.
Main functions:
- Driving guardrail posts into the ground
- Extracting posts for adjustment or replacement
Unlike drilling pile drivers, guardrail pile driving machines rely on hammering and pile extraction, rather than auger drilling or screw-in methods.
🔗 Related equipment:
Guardrail post driver
4. How to Choose the Right Type of Pile Driving Machine
When selecting among different types of pile driving machines, the following factors should be considered:
- Soil and ground conditions
- Pile type and dimensions
- Noise and vibration restrictions
- Project efficiency requirements
There is no single pile driving solution suitable for all construction projects.
5. Conclusion
The types of pile driving machines used in construction vary depending on working method, power system, and application purpose.
Understanding these classifications helps improve foundation quality, construction efficiency, and project safety.
Choosing the right pile driving machine is a key step in successful foundation construction.
