Towable Cherry Picker

What Is a Towable Cherry Picker?

A towable cherry picker is a mobile aerial lift that can be easily moved using a pickup or van. Unlike self-propelled lifts, this type of lift is mounted on a trailer chassis, making it portable and flexible for many job sites. The key feature is that it can be towed behind standard vehicles without the need for a special transport truck. This makes it ideal for small contractors or property maintenance teams.

Compared to heavy boom lifts, the trailer cherry picker is light, compact, and easy to park in narrow places. It’s perfect for temporary use where mobility and quick setup are essential.

Contact us to get special offer now! WhatsApp/WeChat 008613837159132

Towable Cherry Picker Parameter

Battery Power Model Types (10m to 18m)

Model Type	SPABL-10B	SPABL-12B	SPABL-14B		SPABL-16B	SPABL-18B
Lifting height	10m	12m	14.05m		15.8m	18m
Working height	12m	14m	16.05m		17.8m	20m
Load capacity	200kg	200kg	230kg		230kg	230kg
Platform size	1.1*0.65*x1.13m	1.1*0.65*x1.1m	1.53×0.76×1.1m		1.53*0.76X1.1m	1.53*0.76X1.1m
Working radius	5.8m	8m	8.1m		10m	10.8m
Crossing height maximum	4.78m	5m	7.6m		7.6m	9.2m
Length( stowed)	4.35m	5.3m	6.24m		7.9m	8.1m
Width (stowed)	1.5m	2m	1.75m		2m	2.38m
Height(stowed)	1.99m	2.05m	2m		2m	2.38m
Wheel base	1.65m	2m	2m		2.2m	2.6m
Ground clearance	0.15m	0.2m	0.2m		0.2m	0.3m
Turning radius	2.16m	2.2m	4.5m		4.5m	5.66m
Turntable Swing	355°			360°Continuously
Leveling mode	Automatic
Platform rotation	120°	120°	160°		160°	160°

Diesel Power Model Types (14m to 45m)

Model Type	SPABL-14D	SPABL-16D	SPABL-18D	SPABL-20D
Working Height Maximum	16.2m	18m	20m	21.7m
Platform Height Maximum	14.2m	16m	18m	20m
Working radius maximum	8m	9.5m	10.8m	11.7m
Lift capacity	230kg
Length( stowed)	6.2m	7.7m	8.25m	9.23m
Width (stowed)	2.29m	2.29m	2.35m	2.35m
Height(stowed)	2.38m	2.38m	2.38m	2.39m
Wheel base	2.2m	2.4m	2.6m	2.6m
Ground clearance	430mm	430mm	430mm	430mm
Platform measurement	1.83*0.76*1.13m	1.83*0.76*1.13m	1.83*0.76*1.13m	1.83*0.76*1.13m
Tuning radius (inside)	3.0m	3.0m	3.0m	3.0m
Tuning radius (outside)	5.2m	5.2m	5.2m	5.2m
Travel speed(stowed)	4.2km/h
Travel speed(raised or extended)	1.1km/h
Grade ability	45%	45%	45%	40%

Key Features of a Trailer Cherry Picker

Our trailer cherry picker comes with advanced features to ensure safe and efficient operation:

• 360° rotating boom arm for full-area coverage
• Hydraulic or electric lifting system

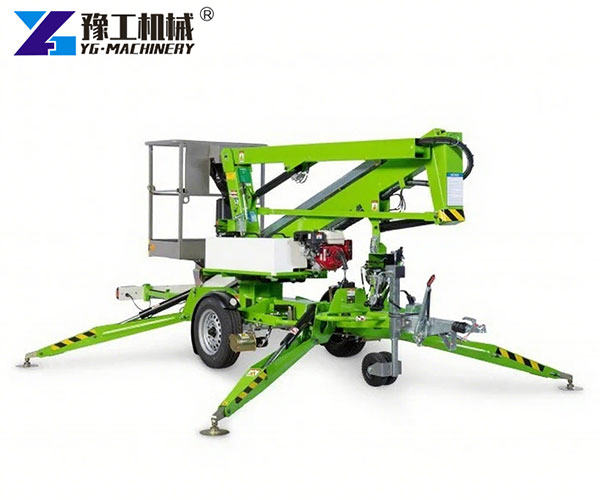

• Outriggers with level sensors for firm ground support
• Adjustable height and outreach for different working conditions

These features make it suitable for both indoor and outdoor use. Whether powered by battery or engine, the controls are easy to use.

Benefits of Using a Towable Cherry Picker

Choosing a towable cherry picker can save both time and money. Here’s why many users prefer it:

• Can be pulled by pickups or small trucks
• No special transport vehicle needed
• Simple maintenance and fewer parts
• In some countries, a trailer driving license is required
• Great value for short-term and multi-location jobs

This tow-behind lift is ideal for businesses that move from site to site and need quick setup.

Application Scenarios

The towable cherry picker for sale is designed for a wide range of tasks:

• Building repairs and roof maintenance
• Outdoor lighting and signage installation

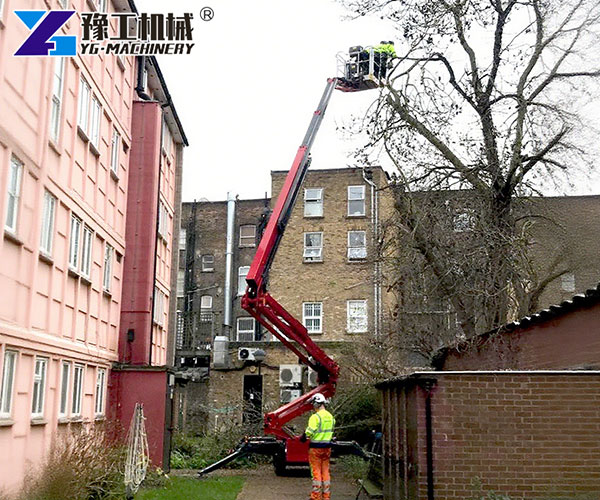

• Tree pruning and landscape work
• Warehouse and shopping mall maintenance

It’s popular in construction, utilities, municipal services, and event setups.

Safety Features and Certifications

Our towable cherry picker is built with safety in mind. It meets international standards and includes:

• Anti-tilt monitoring and stabilizers
• Emergency lowering function
• Control panel with lock for secure operation
• Certified to CE, EN280, or ANSI (based on customer region)

These systems help prevent accidents and protect both the operator and the surroundings.

Why Choose Our Tow Behind Lift?

We offer factory-direct pricing on our tow-behind lift models. Our equipment stands out because of:

• Compact structure and quick delivery
• Optional customization: color, boom size, power source
• Diesel/electric drive options
• Full after-sales service and spare parts support

This flexibility makes our products suitable for various markets in Europe and North America.

Our After-Sales Service

We support every customer with:

• Detailed manuals and videos
• Remote troubleshooting
• Spare parts available for long-term use
• Quick response team for technical issues

We make sure your trailer cherry picker keeps working, even after years of service.

Get the right height access solution at the right price. Our towable cherry picker is ready to go – compact, powerful, and easy to use. Contact us now to get your customized machine with fast delivery and expert support.
