Underground construction projects today require fast support, stable concrete quality, and safe working conditions. Traditional manual spraying can no longer meet these demands. A Shotcrete Truck provides a reliable way to spray wet concrete with high accuracy and strong surface bonding.
For tunnel contractors and mining companies, this equipment improves spraying efficiency, reduces dust, and helps control material quality. As underground spaces become more complex, using the right concrete spraying solution is no longer optional, but necessary.

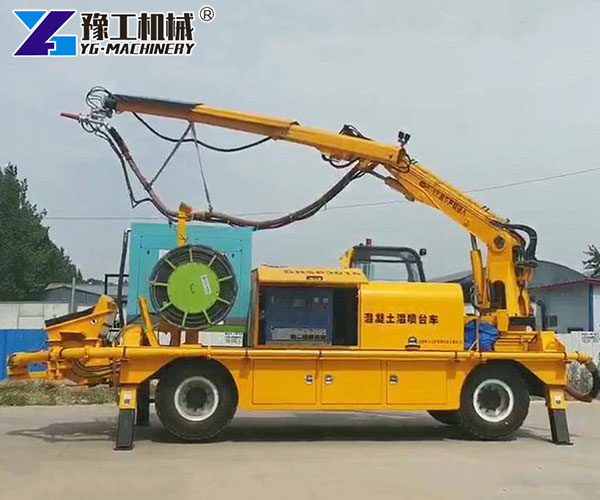

What Is A Shotcrete Truck
A Shotcrete Truck is a specialized concrete spraying machine used mainly in underground and confined construction areas. It sprays wet concrete onto rock or concrete surfaces at high speed to form a strong support layer.
Compared with small portable sprayers, this type of equipment integrates pumping, spraying, and control systems on one mobile platform. It allows operators to complete large-area spraying tasks with better consistency and safety.
Main characteristics include:
- Wet concrete spraying instead of dry material feeding
- Mechanical spraying arm for accurate positioning
- Stable output for continuous construction work
Product Parameters of Wet Shotcrete Truck
| Project Content | YG-3016 | YG-4016 |
| Vehicle length | 7770mm | 7880mm |
| Width | 2460mm | 2460mm |
| Height | 3180mm | 3380mm |
| Rated weight | 14T | 15T |
| minimum turning radius | 10.8M | 11.5M |
| Max Gradeability | ≥40° | ≥40° |
| Engine power | 85KW | 103KW |
| wheelbase | 3900mm | 4100mm |
| Front axle wheelbase | 1870mm | 1870mm |
| Rear axle wheelbase | 1870mm | 1870mm |

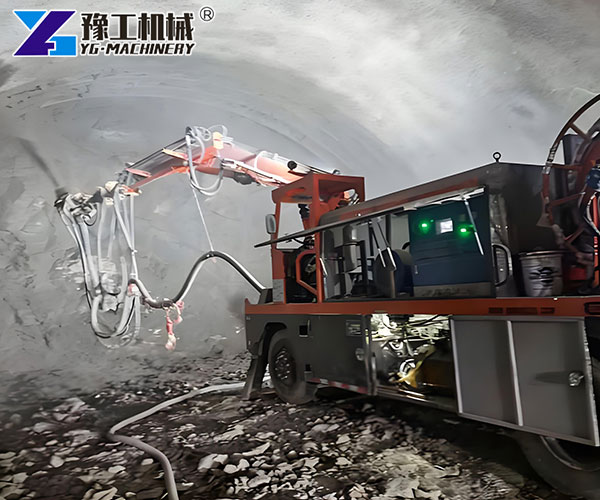

How Wet Shotcrete Works In Underground Projects
The wet spraying method prepares concrete with water before pumping. This process is widely used in modern tunnel construction because it offers better quality control.
In a wet shotcrete spraying system, concrete is mixed at a batching plant or mixer, then pumped through pipelines to the nozzle. Compressed air is added only at the spraying point to help the concrete stick firmly to the surface.
Key benefits of this working method include:
- More even concrete strength
- Less dust during spraying
- Lower rebound rate compared to dry spraying

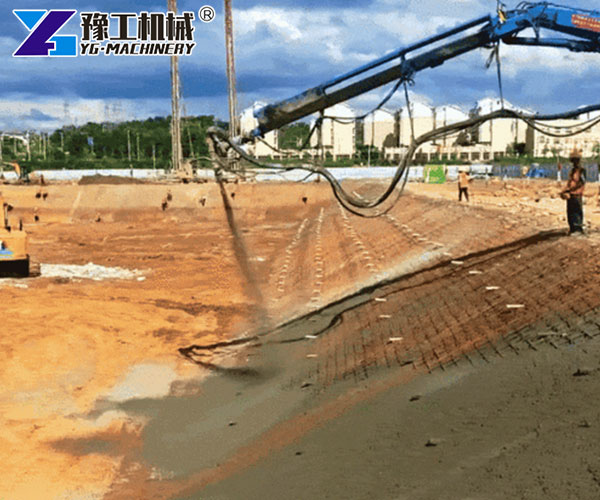

Key Working Systems Of A Wet Shotcrete Truck
Wet Shotcrete Truck Core Structure And Design
A wet shotcrete truck is built with several coordinated systems to ensure smooth operation underground.
The main working systems usually include:
- Concrete pumping system for wet mix delivery
- Hydraulic spraying arm for flexible coverage
- Air compressor system to support the spraying force
- Additive dosing unit for accelerator control
- Central control panel for safe operation
Each system works together to keep spraying stable even in narrow tunnels.

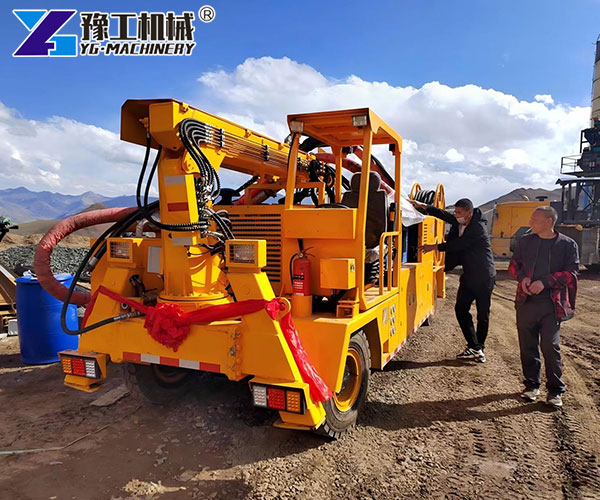

Applications of Tunnel Shotcrete Equipment
Tunnel Shotcrete Equipment For Underground Support
As professional tunnel shotcrete equipment, this machine is widely used in projects where fast and reliable support is required.
Common application areas include:
- Railway and highway tunnel excavation
- Metro and underground transport systems
- Mining roadways and shafts
- Hydropower and water diversion tunnels
In these projects, fast support spraying helps stabilize surrounding rock and improves overall construction safety.
Performance Advantages Compared With Manual Or Dry Spraying
Using a concrete spraying truck offers clear advantages over manual or dry shotcrete methods.
Key performance improvements include:
- Higher daily spraying output
- Lower dust level in confined spaces
- Reduced material waste and rebound
- More stable concrete thickness
- Less dependence on operator experience
These advantages make wet spraying the preferred solution in modern underground construction.

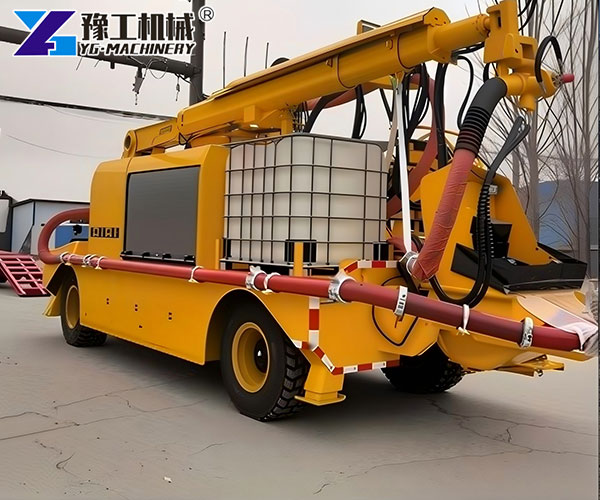

Equipment Configuration Options That Affect Purchasing Decisions
Concrete Spraying Truck Configuration Choices
Different projects require different machine configurations. When selecting a concrete spraying truck, buyers should pay attention to several key options.
Important configuration factors include:
- Spraying arm length and movement range
- Pumping capacity and pressure level
- Chassis type for tunnel mobility
- Control system type (manual or remote)
- Compatibility with local concrete mixes
Choosing the right configuration helps avoid over-investment or performance limitations.
When A Shotcrete Truck Is Not The Best Option
Although powerful, a Shotcrete Truck is not suitable for every job site.
It may not be the right choice in these situations:
- Very small repair projects with limited spraying volume
- Sites with extremely narrow access paths
- Short-term jobs where the equipment transport cost is high
- Locations without a stable wet concrete supply
In such cases, smaller machines or manual methods may be more economical.

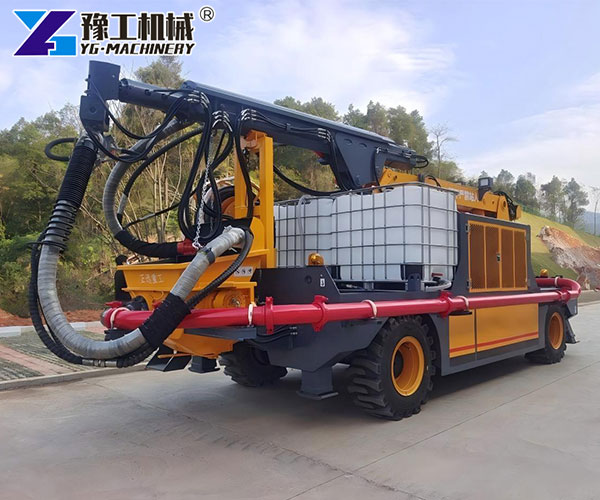

How To Choose The Right Shotcrete Truck For Your Project
Underground Construction Machinery Selection Logic
As part of underground construction machinery, shotcrete trucks should be selected based on real working conditions, not only technical data.
Key selection points include:
- Tunnel size and working space
- Daily concrete spraying demand
- Project duration and work intensity
- Local service and spare parts support
- Operator skill level and training needs
A well-matched machine improves long-term productivity and reduces downtime.
Shotcrete Truck Frequently Asked Questions
Is wet shotcrete better than dry shotcrete?
Yes, in most underground projects. Wet shotcrete offers lower dust, better quality control, and safer operation.
Can one shotcrete truck handle different projects?
Yes, if the configuration matches the spraying distance and tunnel size.
Does wet spraying reduce material waste?
Yes, the rebound rate is usually much lower than dry spraying.
Is operator training required?
Basic training is needed, but operation is easier than manual spraying.
