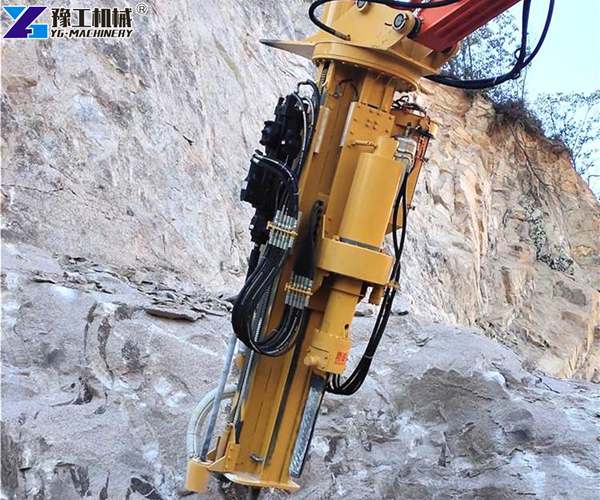

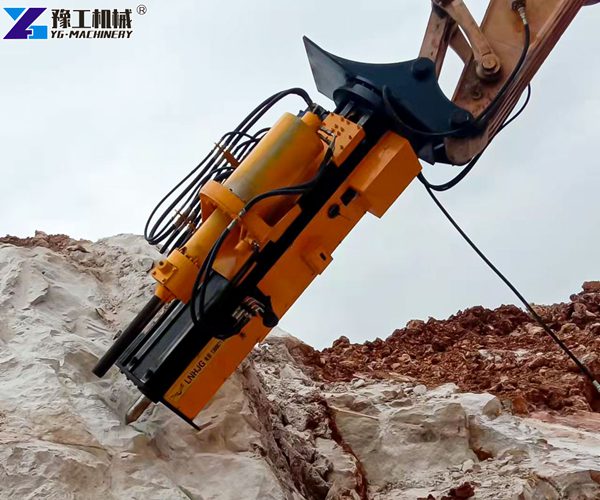

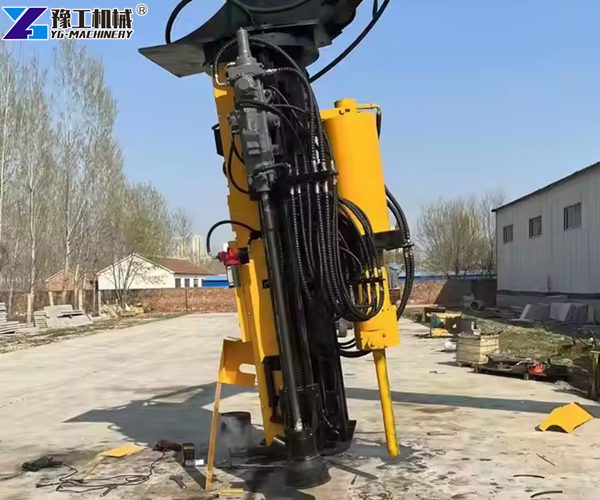

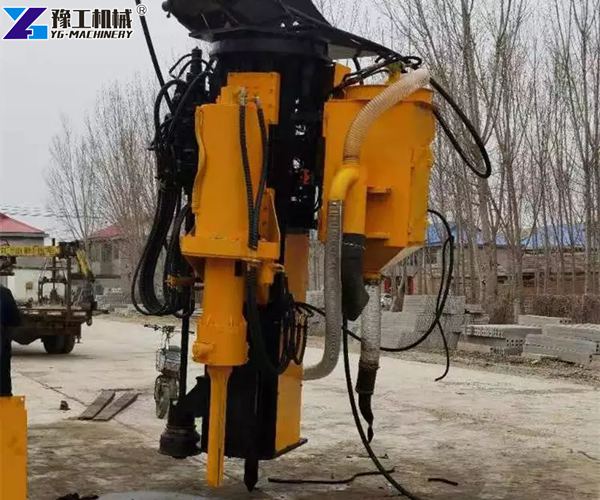

The rock drill splitter machine is a machine that integrates drilling and splitting operations. It is particularly suitable for earthwork projects that cannot be blasted, urban foundation pits, subway station construction, pipeline trenches, highway widening and other stone excavation construction.
At the same time, it can also customize hard rock crushing-free equipment for customers according to the actual situation of the project.
Technical Parameters of Integrated Rock Drilling and Splitting Machine
| Drilling and splitting all-in-one machine | |
| Matching excavator model | 25T |
| Length | 3900mm |
| Width | 1300mm |
| Height | 1000mm |
| Total weight (including air compressor) | 3.2T |
| Hole diameter | 43-115mm |
| Hole depth | 1700mm |
| Average drilling speed | 1m/min |
| Impact energy | 300J |
| Impact pressure | 17.5mpa |
| Impact flow | 80-100L/min |
| Impact energy | 18kw |
| The maximum total flow of the system | 300L |
| Rated pressure (MPA) of the excavator system | 40Mpa |
| Splitting machine | 380 |
| Rated tension | 5000T |
| Splitting time | 3minutes |
| Crack width | 44929mm |
| Displacement of air compressor | 8m³/5bar |
| Dust removal system | Can be increased |
| Operation method | Remote control or driving |
Features of Hydraulic Rock Drill Splitter Machine
One machine, two jobs: Drill holes and split rock without changing tools.
Hydraulic-powered efficiency: Connects directly to your excavator’s hydraulic system.
Ultimate mobility: Break rock even in tight spaces, mountainous regions, or sites with limited access.
Cost-saving: Fewer machines, less manpower, and faster results.
Contact us to get special offer now! WhatsApp/WeChat 008613598866720

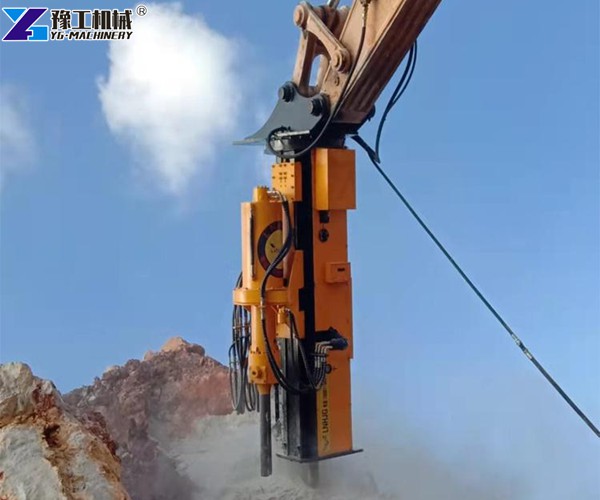

How integrated drilling & splitting machine works?
- Drilling Phase
The integrated drill bit is mounted on a telescopic arm. With pinpoint precision, it drills deep into rock — granite, basalt, limestone, you name it. - Splitting Phase
Once the hole is drilled, a hydraulic wedge is inserted. A controlled pressure system quietly cracks the rock from the inside, creating clean separations without vibrations or flying debris.
Real Use Case: Philippine Construction Projects
Let’s say you’re building a hillside road network in Baguio, or a resort with rocky terrain in El Nido, Palawan.
Blasting is out of the question due to noise restrictions and environmental laws.
Traditional breakers? Too slow, too loud, and too expensive in the long run.
Now picture this:

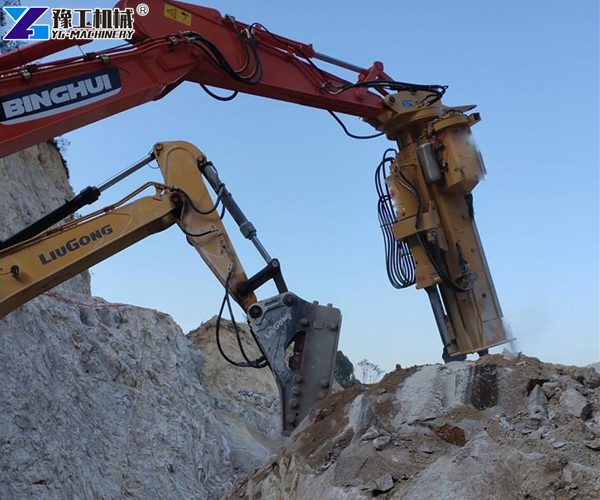

- Your 25-ton excavator rolls onto the site.
- You attach the YG rock drill splitter unit in under 30 minutes.
- Within the hour, you’re drilling holes and cracking boulders with pinpoint precision.
- There’s no flying debris, no cracks in surrounding structures, and best of all — no complaints.
You may also like: Hydraulic rock drilling machine for sale
Get Your Drill and Splitter Attachment Today
Contact us to get the price for the Integrated Rock Drill Splitter Machine for 25-Ton Excavators.
