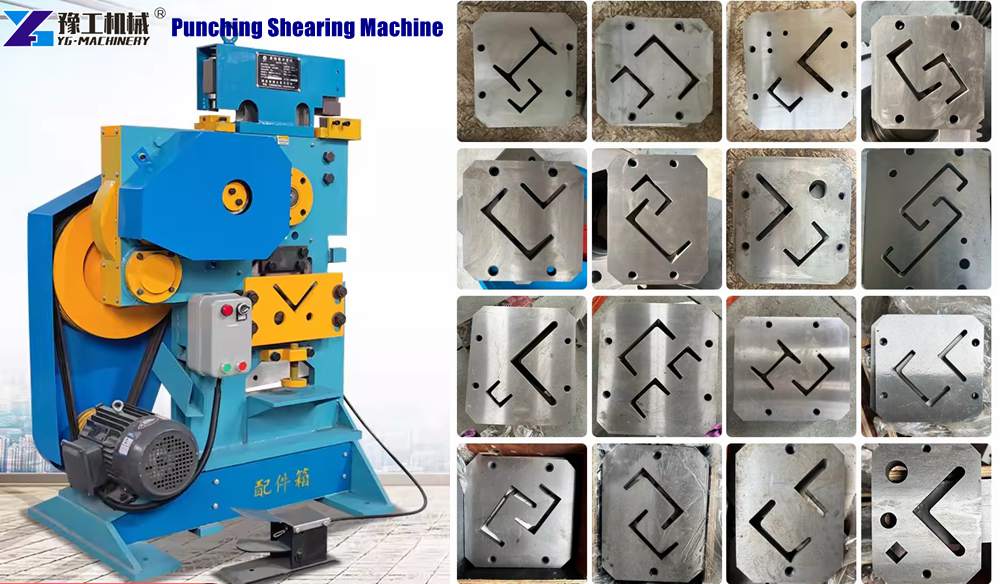

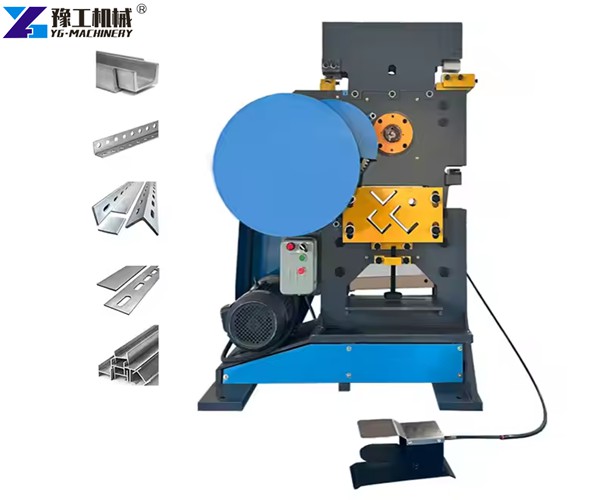

YG metal punch and shear machine isdesigned for cutting, punching, and shaping metal sheets with high accuracy. The machine is widely used in industries like automotive, construction, and HVAC manufacturing.
Technical Parameters of Metal Punch And Shear Machine
| Model | QA32-10B |
| Pressure | 500KN |
| Mold stroke | 30MM |
| Stamping speed | 30 time/min |
| Total power | 3.0KW |
| Weight | 710KG |
| Form factor | 900*600*1200mm |
| Package size | 1000*680*1460mm |
| Cut corner steel | MAX 100*100*10mm |
| Grooved steel | MAX 12# |
| Cut flat steel | MAX 230*10mm |
| Punching thickness | MAX 10mm |
| Cut round bars | MAXΦ35mm |
| Voltage | 220V/380V/400V/415V/customizable |
| Voltage frequency | 50/60HZ |
What is a YG Punching and Shearing Machine?

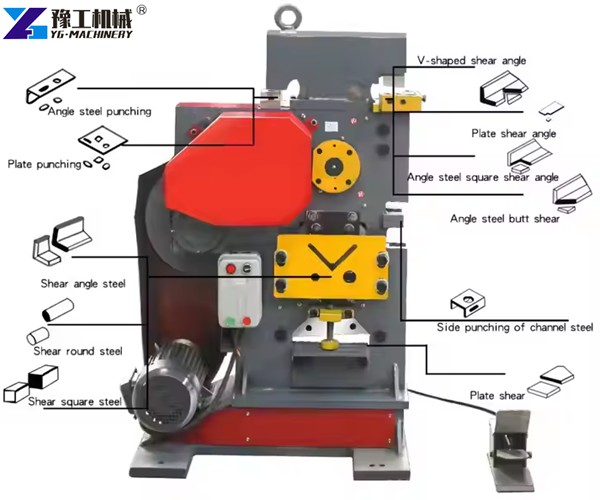

YG punching and shearing machine is a multi-functional metalworking machine that combines punching and shearing capabilities in a single unit. It is designed for high-speed, precise cutting and hole-punching operations on sheet metal.
Features:
- Dual Functionality: Performs both punching and shearing operations.
- High Precision: CNC-controlled for accurate cuts and hole placements.
- Efficiency: Reduces production time by eliminating the need for multiple machines.
- Versatility: Works with steel, aluminum, copper, and other metals.
- Automation: Some models feature CNC programming for repeatable tasks.
How Does a YG Punching and Shearing Machine Work?
- Material Feeding: The metal sheet is positioned on the machine bed.
- Tool Selection: The appropriate punch and die are chosen for the operation.
- CNC Programming (if applicable): The operator inputs dimensions, hole patterns, and cutting paths.
- Punching/Shearing Process:
- Punching: A hydraulic or mechanical punch creates holes or shapes.
- Shearing: A blade cuts the sheet to the desired size.
- Output: The finished part is ejected, ready for further processing.
Benefits of Using a YG Punching and Shearing Machine
- Combines two operations (punching & shearing) in one machine.
- CNC models ensure exact cuts and hole placements.
- Reduces the need for separate punching presses and shears.
- Handles various materials and thicknesses.
- Optimizes material usage with precise cutting.
Buy here the Metal Punch and Shear Machine
YG punching and shearing machine is an excellent investment for metal fabricators seeking efficiency, precision, and cost savings.
Looking for the best YG hydraulic punching and shearing machine? Contact our expert to get more informations about models, customer reviews, and choose one that fits your production needs!
