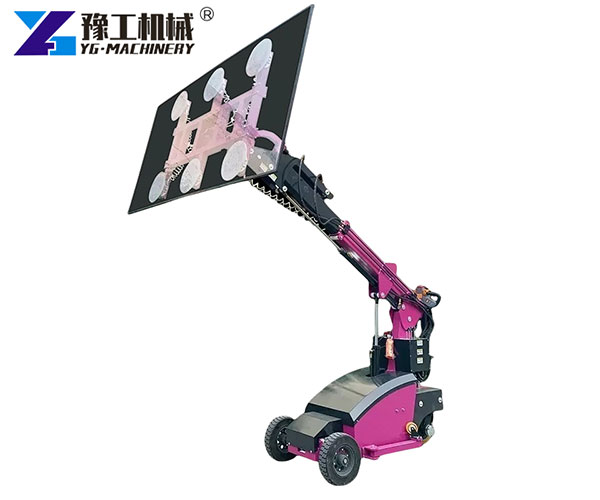

Glass Vacuum Lifting Equipment for Sale

The Glass Vacuum Lifting Equipment from YG is designed to help users install glass safely, quickly, and with high precision. It is widely used in modern buildings, large curtain walls, factories, and interior glass handling work.

Role Of Glass Vacuum Lifting Equipment In Modern Glazing

The demand for glass vacuum lifting equipment grows as glass panels become larger and thicker. A glass installation robot is now standard in the construction industry because it reduces workload and improves safety.

Typical working conditions include:

Exterior building glass walls

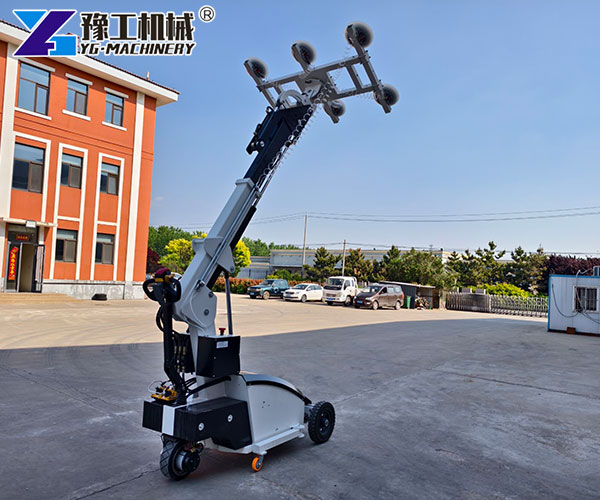

Indoor glass placement in narrow spaces
Heavy industrial glass handling
High-altitude or limited-space installations

These machines handle large glass panels with stable suction and allow operators to complete tasks that normally require several workers.

Glass Lifter Machine Parameter

Model Type		YG-LD-300	YG-LD-400	YG-LD-500	YG-LD-600	YG-LD-800
Load Capacity		300kg(retract)150kg(extend)	400kg(retract)200kg(extend)	500kg(retract)250kg(extend)	600kg(retract)300kg(extend)	800kg(retract)400kg(extend)
Lifting Height		3500mm	3500mm	3700mm	3700mm	4500mm
QTY of Suction Cap		4pcs	4pcs	6pcs	6pcs	8pcs
Rubber Suction Cap		300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Maintenance-free Battery		2x12V/80AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Battery Charger		Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger
Drive motor		24V/1200W	24V/1200W	24V/1200W	24V/1200W	24V/1200W
Lifting Motor		24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/12L
Chassis L*W		2660*810mm	2660*810mm	2800*810mm	2800*810mm	2800*810mm
Driving Wheel		Ø250x80mm	Ø250x80mm	Ø300x100mm	Ø300x100mm	Ø300x125mm
Packing Size(mm)		256010301700	256010301700	258010501700	258010501700	300012502300
N.W/G.W		1100/1150kg	1280/1330kg	1300/1350kg	1400/1450kg	1600/1650kg
Loading Qty		1x20GP/40GP: 6SETS/12SETS
Movement	Automatic(4 kinds)	1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally.
	Manual (2kinds)	1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional).
Usages		Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc.

Request A Free Quote

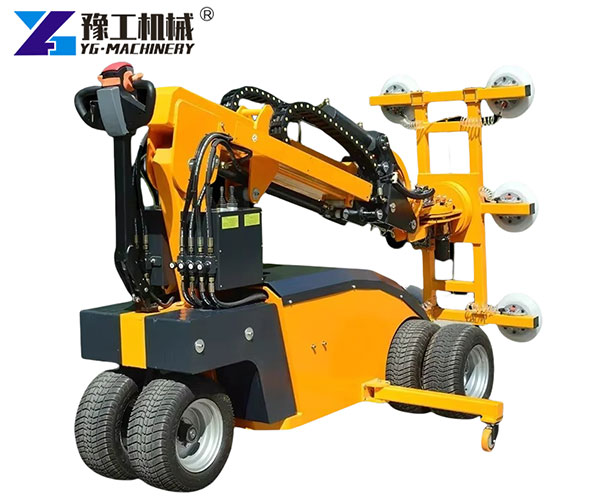

Core Structure of The Glass Installation Robot

This section explains the structure of the glass installation robot, helping users understand how the machine works and why it is safe for heavy-duty tasks.

Key structural systems:

Vacuum Suction Cup System:
Strong suction, wear-resistant material, adjustable layout, and multiple protection circuits.
Electric Telescopic Arm & Multi-Axis Joint:
Supports up/down, rotation, tilt, and micro-adjustment for accurate positioning.
Stable Chassis:
Optional indoor wheels or outdoor off-road tires for rough terrain.
Sensors & Control Module:
Electronic monitoring for vacuum level, arm movements, and system safety.
Safety System:
Double vacuum circuits, alarm signals, suction-lock protection, and emergency stop.

How Glass Vacuum Lifting Equipment Works

The working process is simple and allows even one operator to handle large glass panels.

Steps in the vacuum glass lifter workflow:

Glass Picking Mode:
Suction → Lifting → Positioning.
Positioning Control:
Multi-axis rotation, tilt, and small-angle micro adjustment help align the glass with frames.
Single-Operator Operation:
The control handle lets one person complete high-precision installation.
Outdoor Stability:
The system keeps strong suction even in light wind, maintaining safe control during lifting.

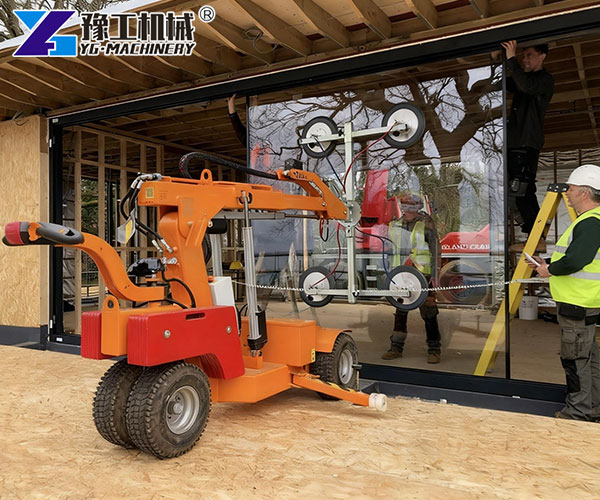

glazing lifting machine for large panels

Request A Free Quote

Key Benefits For Glass Installation Robot

The glass vacuum lifting equipment provides strong value to construction teams and glazing businesses.

Improved Safety:
Less manual lifting reduces the chance of glass slips or injuries.
Higher Installation Accuracy:
Micro-adjust and multi-angle rotation allow precise alignment.
Lower Labor Cost:
One operator can install large glass panels that usually require a team.
Strong Load Capacity:
Works with medium and large glass sheets.
Flexible Expansion:
Options include remote control, electric suction, longer arms, and custom frames.

Matching Glass Vacuum Lifting Equipment To User Workflows

Choosing the right model depends on the type of work, lifting needs, and jobsite conditions.

Main factors to consider:

Load Level:
300kg / 600kg / 1000kg / 1500kg options.
Glass Size & Thickness:
Select the proper suction cup quantity and layout.
Indoor or Outdoor Use:
Choose wheel type, chassis width, and arm length.
Operation Mode:
Single-operator, remote-control use, or multi-scene compatibility.
Customization Needs:
OEM/ODM options for suction cups, arms, battery size, and wheel system.
