When it comes to reliable, efficient, and powerful deep drilling, YG DTH hammer drilling solutions are in a league of their own. Whether you’re tackling mining, quarrying, geothermal drilling, or water well projects, this precision-engineered DTH hammer is a good choice for you.
Looking for DTH hammer drilling tools that maximize penetration rates and minimize operational costs? YG Machinery has you covered.

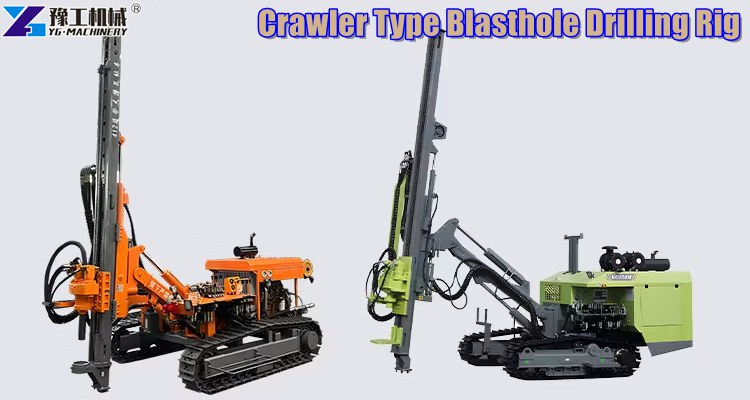

YG DTH Hammer Drilling Machine For Sale
DTH (Down-the-Hole) hammer drilling is a method where the hammer is located directly behind the drill bit, providing fast and direct impact energy.
Specifications of down the hole hammer drilling
| Model | YGS150 | YGS100A | YGS153 | YGS180 | YGS300 | YGS350 |
| Total Weight | 5.95T | 3.8T | 6.3T | 6.8T | 8T | 16T |
| Walking speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.2/3.8km/h | 4km/h 2km/h | 2.5km/h |
| Diesel tank capacity | 85L | 70L | 85L | 85L | 225L | 210L |
| Shipping size | 6500*2110*2400mm | 4640*1980*2260mm | 6600*2110*2500mm | 6600*2220*2600mm | 7600*2350*2800mm | 7210*2200*2950mm |
| Drilling hole diameter | 90-146mm | 83-130mm | 90-146mm | 90-152mm | 90-165mm | 76-260mm |
| Power configuration | YCD4R22T-80 | YC2108 33kw/2400rpm | YCD4R22T-80 55kw | YC4DK80-T302 | YC4DK100-T304 73.5kw/2200rpm | YCD4R22T-80 132kw/2200rpm |
| Highest horizontal hole height | 3.2m | 2.8m | 3.6m | 3.25m | 3.5m | 3.2m |
At YG, we engineer DTH hammers to deliver consistent performance whether you’re drilling through hard rock, soft formations, or anything in between.
How DTH Hammer Drilling Works
- Compressed air is delivered into the hammer via the drill pipe.
- Inside the hammer, air drives a piston that strikes the drill bit directly.
- The percussive force breaks up the rock while the drill string rotates.
- Broken rock fragments (cuttings) are flushed up to the surface by the air flow.
👉 Result: Faster drilling with straighter holes and minimal deviation, even at depths exceeding hundreds of meters!
Applications of down the hole hammer for sale
Our DTH hammer solutions are perfect for:
- Water well drilling
- Foundation work
- Quarry and mining operations
- Oil and gas exploration
- Geothermal energy projects
Customizable Options
From low-pressure to high-pressure hammers (from 3″ to 12″ sizes), YG offers a range of products to suit your project needs.
Why YG Machinery?
At YG, we combine cutting-edge technology, rigorous quality control, and customer-centric service to ensure every DTH hammer we deliver meets — and exceeds — your expectations.
🌟 ISO-certified manufacturing standards
🌟 Professional R&D team
🌟 Global shipping and on-site support available
🌟 Competitive factory-direct prices
Get a Competitive Advantage with YG DTH Hammers!
Frequently Asked Questions (FAQs)
Q1: What size DTH hammer do I need?
A: It depends on your drilling hole size and project depth. Typically, your drill bit should be slightly larger than your hammer for optimal performance. Our team can help you choose the right size.
Q2: How deep can YG DTH hammers drill?
A: YG DTH hammers are capable of drilling depths over 1,000 meters depending on ground conditions and equipment setup.
Q3: What maintenance is required for DTH hammers?
A: Regular inspection, lubrication, and timely replacement of wear parts are essential for maximum service life. YG provides a detailed maintenance guide with every purchase.
Q4: Are spare parts available?
A: Yes! YG Machinery offers a full range of replacement parts and service kits for all our DTH hammer models.
Q5: Can I use YG DTH hammers with my existing drill rig?
A: In most cases, yes! Our hammers are designed for compatibility with a wide range of industry-standard drilling rigs.
Get Started with YG DTH Hammer Drilling Today
Ready to take your drilling operations to the next level?
Discover why contractors and companies worldwide trust YG Machinery for superior DTH hammer drilling performance.
📧 Contact Us for Expert Advice and Best Pricing!
📦 Global Delivery | OEM Support | 24/7 After-Sales Service
