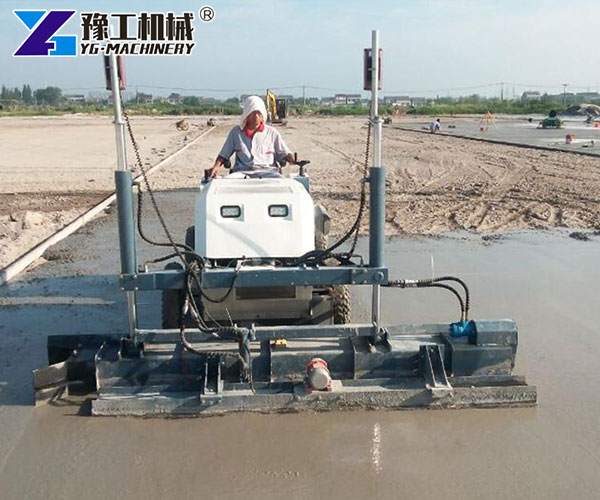

A Concrete Laser Screed is a construction machine used to level and finish concrete floors quickly and accurately. It uses laser-guided technology to ensure flat and even surfaces. This machine is often used for large industrial or commercial floors, such as warehouses, factories, and parking lots.
By using a Concrete Laser Screed, you can reduce manual labor and finish the job faster, with better precision than traditional screeding methods.
Contact us to get special offer now! WhatsApp/WeChat 008613837159132
Parameters of Concrete Laser Screed Machine
| Model | YG-25-2 | YG-25-4 |
| Motor Power | 3.0kw 220v | 32.5kw 24.2hp |
| Oil Tank Volume | 18L (Work 10h) | 35L |
| Walking Speed | 0-20m/min | 0-55m/min |
| Vibration Motor Speed | 4000rpm | 4000rpm |
| Exciting Force | 2000N | 2000N |
| Vibrating Plate Width | 2500mm | 2500mm |
| Leveling Thickness | 50-250mm | 350mm |
| Laser Control System | American Imported Danfoss | |
| Laser Launcher System | American Tianbao launcher | |
| Laser Receiver System | Switzerland Leica receives | |
| Dimension | 3220*2780*1172mm | 3370*2890*1850mm |
| Weight | 280kg | 800kg |
Key Features Of Laser Screed Machine
The Concrete Laser Screed Machine improves floor quality and reduces work time. Some of its main features include:
- Laser Leveling System: Keeps the floor flat and even during the entire process.
- High Efficiency: Covers large areas in a short time.
- Easy Operation: Simple controls that can be used by one operator.
- Strong Engine: Ensures steady power for continuous work.
- Adjustable Screed Head: Helps fit different job needs.
These features make the Concrete Laser Screed Machine perfect for modern construction teams who want to improve quality and save costs.

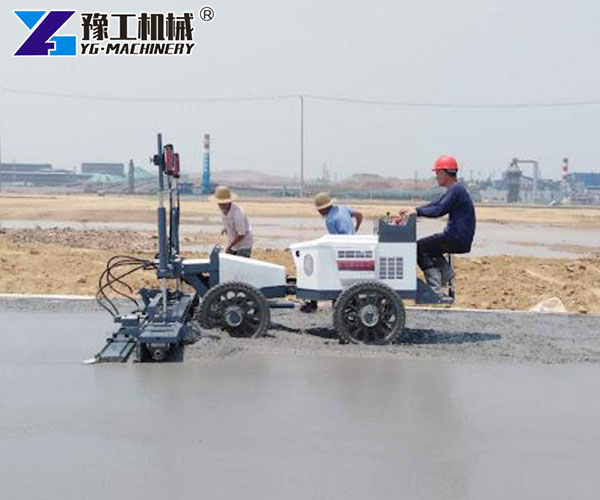

Applications Of Laser Leveling Machine
The Concrete Laser Leveling Machine is suitable for many types of concrete jobs, especially in large flat areas. Common applications include:
- Warehouse floors
- Airport runways
- Factory foundations
- Shopping mall floors
- Road and bridge decks
With its high accuracy, the Concrete Laser Screed helps avoid cracks and dips that often appear in manual work. It gives you smoother, stronger floors that last longer.
Why Buy A Concrete Laser Screed From YG?
If you want better floors, faster work, and lower labor costs, then the Concrete Laser Screed is the right machine for you. Here’s why many contractors choose this machine:
Save Time: Level more square meters per hour.
Reduce Errors: Laser-guided accuracy means fewer corrections later.
Lower Labor Costs: Fewer workers are needed on-site.
Stronger Floors: Uniform thickness reduces cracking.
Good Investment: Long lifespan and fast return on cost.
YG Machinery provides high-quality Concrete Laser Screed Machines with strong support, reliable performance, and competitive prices.
