The CNC hoop bending machine is a rebar processing machine for industries that require high-accuracy curved metal components. Whether you’re in construction, automotive, or furniture manufacturing, this advanced machine ensures consistent, high-quality bends with minimal manual intervention.

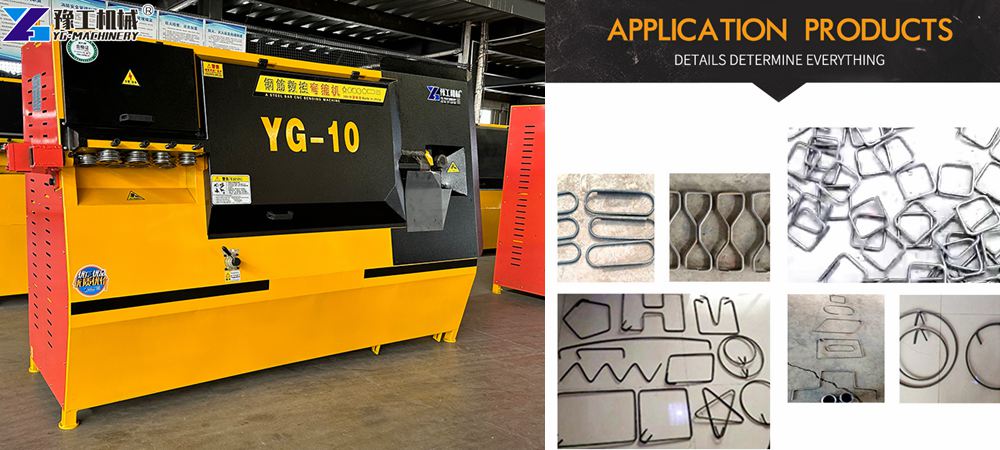

YG CNC Hoop Bending Machine For Sale
CNC (Computer Numerical Control) hoop bending machine is a specialized piece of equipment designed to bend metal bars, rods, and flat strips into precise circular or semi-circular shapes (hoops). Unlike manual bending, CNC machines use automated controls to ensure repeatability and accuracy.
Technical parameters of CNC Stirrup Bending Machine
| Model | YG-2 | YG-1 |
| Single wire(mm) | Round steel 4-12mm, Deformed steel bar 4-10mm | Round steel 4-10mm, Deformed steel bar 4-8mm |
| Double wire(mm) | cRound steel 4-8mm, Deformed steel bar4-8mm | Round steel 4-6mm, Deformed steel bar 4-6mm |
| Max bending angle | +180° | +180° |
| Center pin diameter | 16、18、20 | 16、 18、 20 |
| Max towing speed | 60m/min | 60m/min |
| Max bending speed | 800°/sec | 800°/sec |
| Machine size | 3280*1000*1700mm | 2600*800*1700mm |
| Device color | Yellow(customized) | Yellow(customized) |
| Pieces Processed | ≤2 | ≤2 |
| Air circuit system pressure | ≥0.8mpa | ≥0.8mpa |
| Total Power | 20kw | 14kw |
| Working temperature | -5°C~40°C | -5°C~40°C |
| Length accuracy | ±1mm | ±1mm |
| Angle accuracy | ±1° | ±1° |
| Average power | 5Kw/h | 4.5Kw/h |
| Total weight | 1350KG | 1150KG |
How Does a CNC Hoop Bending Machine Work?
- Material Loading: The metal bar or strip is fed into the machine.
- CNC Programming: The operator inputs bending parameters (radius, angle, number of bends).
- Bending Process: Hydraulic or servo-electric mechanisms apply force to shape the metal.
- Output: The machine produces a perfectly bent hoop or arc.
Features
- Adjustability: Handles different diameters and thicknesses.
- CNC Precision: Programmable settings for exact bend angles and radii.
- Versatility: Works with steel, aluminum, copper, and other metals.
- High Speed: Faster production compared to manual bending.
The entire process is automated, reducing human error and increasing efficiency.
Benefits of Using a CNC Steel Hoop Bending Machine
- Superior Accuracy – CNC technology ensures consistent bends every time.
- Increased Productivity – Faster than manual bending, ideal for mass production.
- Reduced Waste – Precision bending minimizes material errors.
- Flexibility – Can create complex shapes with multiple bends.
- Labor Savings – Reduces reliance on skilled manual labor.

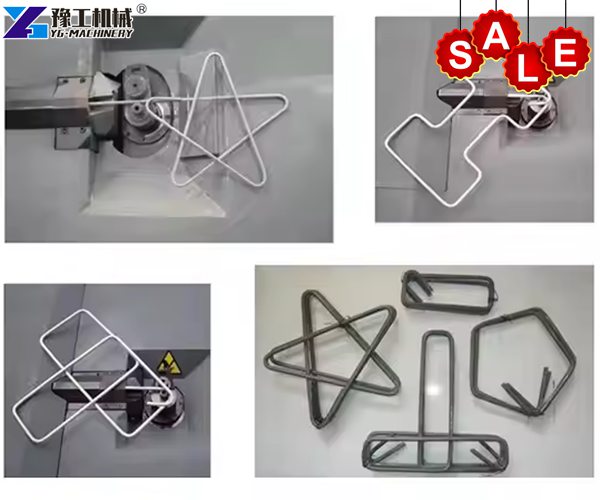

Applications of Automatic Stirrup Bending Machine
Industries that benefit from CNC hoop bending include:
1. Construction & Architecture
- Steel reinforcement hoops for concrete columns.
- Architectural metal frames for domes and curved structures.
2. Automotive & Aerospace
- Exhaust systems, roll cages, and custom brackets.
3. Furniture & Decor
- Metal furniture frames, decorative hoops, and artistic installations.
4. Industrial Manufacturing
- Conveyor belts, storage racks, and machinery components.
Check the working case in Indonesia of YG CNC Steel Hoop Bending Machine.
Conclusion
A CNC hoop bending machine is a smart investment for businesses looking to enhance precision, speed, and efficiency in metal bending operations. Whether for construction, automotive, or custom fabrication, this technology delivers unmatched accuracy and cost savings.
Looking for the best CNC hoop bender? Compare models, read reviews, and choose a machine that fits your production needs!
🔹 Need expert advice? Contact us today for a consultation!
