Ground anchoring is a critical part of many construction projects, from slope protection to foundation reinforcement. When drilling accuracy, ground stability, and job site safety matter, choosing the right anchoring drilling rig becomes a practical decision, not just a technical one. A well-designed anchoring drilling rig helps contractors drill stable anchor holes in rock and soil, adapt to complex terrain, and complete anchoring work with confidence and efficiency.
What An Anchoring Drilling Rig Is Used For

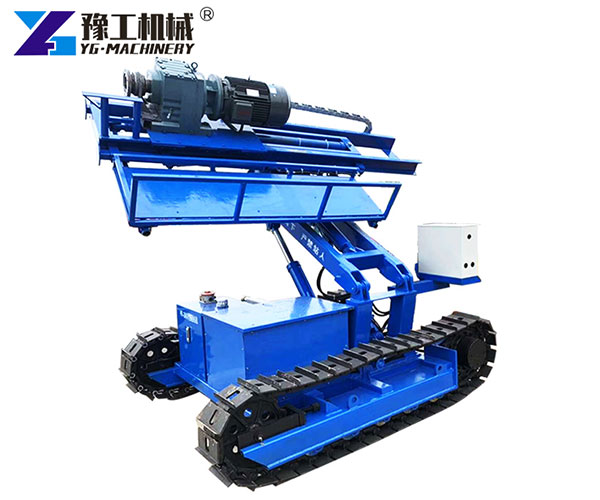

An Anchoring Drilling Rig is a special drilling machine used to drill anchor holes in soil and rock. These holes are prepared for anchor bolts, steel bars, or cables that improve ground stability and structural safety.
This type of machine is widely used in projects where the ground needs extra support. Compared with normal drilling machines, an Anchoring Drilling Rig focuses more on:
- Hole accuracy
- Drilling stability
- Adaptability to complex ground
It is designed for anchoring work, not only for drilling speed.
Product Parameters of Anchoring Drilling Rig
The technical parameters of an Anchoring Drilling Rig may vary by model, but common specifications include:
| Model | YG-150C | YG-150D |
| Main Parameters | ||
| Drilling Diameter (mm) | Φ150-250 | |
| Drilling Depth (m) | 130-170 | |
| Final hole diameter (mm) | 75 | |
| Drill pipe diameter/casing diameter (mm) | Φ73, Φ89, Φ102, Φ114 | |
| Drilling angle | 0-90° | |
| Rotator output speed (r/min) | 10/20/30/35/40/60/65/70/85/130/170 | |
| Rotator output torque (N.m) | 7500 | |
| Rotator travel (mm) | 3400 | |
| Rotor lift force (KN) | 70 | |
| Rotator lift speed (m/min) | 0-5 adjustable /7/23/30 | |
| Rotor pressure (KN) | 36 | |
| Rotator pressure rate 0-10 adjustable (m/min) | 0-10 adjustable /14/46/59 | |
| Walking parameters | ||
| Walking mode | Crawler walking | |
| Climbing angle | 25° | |
| Crawler Grounding Pressure (Kpa) | 36 | |
| Walking speed (km/h) | 20 | |
| Input power | ||
| Input power | Diesel 96Kw | Electric 55+18.5kw |
| Dimensions (mm) | 5400x2100x2000 | 5400x2100x2000 |
| Weight (kg) | 6500 | 6000 |
These parameters help buyers understand whether the machine matches their project needs.
Applications Of The Anchoring Drilling Rig
Core Functions Of An Anchor Drilling Machine
An anchor drilling machine is mainly used to create stable anchor holes with controlled depth and angle.
Its core functions include:
- Drilling anchor holes in soil and rock
- Supporting different drilling angles
- Providing stable torque during drilling
These functions ensure anchors can be installed correctly and safely.
Typical Anchoring Applications
Typical applications include:
- Slope protection projects
- Foundation reinforcement work
- Retaining wall anchoring
- Infrastructure construction
In these projects, stable anchoring directly affects long-term safety.
Common Project Scenarios

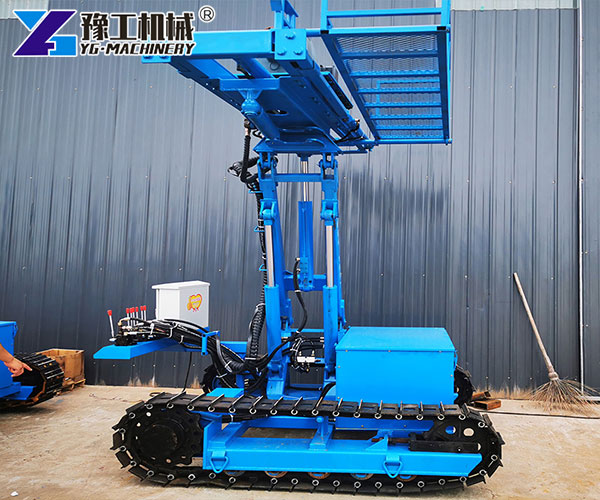

Slope Stabilization With A Slope Anchoring Drilling Rig
A slope anchoring drilling rig is often used in highway, railway, and open-area slope projects.
Key requirements in slope work include:
- Stable operation on uneven ground
- Flexible mast angle adjustment
- Strong drilling force in rock layers
Tracked movement helps the rig stay stable on slopes.
Foundation Reinforcement With A Foundation Anchoring Rig
A foundation anchoring rig is used to improve the load capacity and stability of building foundations.
It is commonly applied in:
- Building a foundation strengthening
- Bridge and retaining wall projects
- Deep foundation anchoring
Accurate drilling depth and diameter are critical in these cases.
Underground And Surface Projects
Anchoring drilling is used in both underground and surface environments, such as:
- Tunnels and underground spaces
- Open construction sites
- Mountain and rock areas
The machine must adapt to limited space and changing ground conditions.
Working Principle Of The Anchoring Drilling Rig

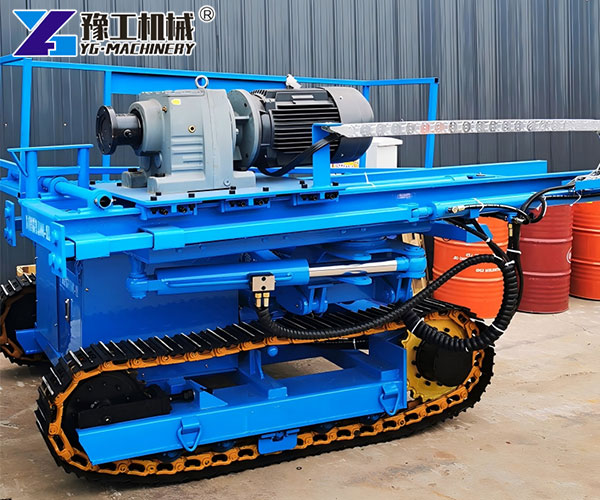

Drilling Structure Of Rock Anchoring Drilling Equipment
Rock anchoring drilling equipment uses a strong drilling structure that includes:
- Drilling mast
- Rotary drilling head
- Drill rods and bits
This structure keeps the drilling process stable and controlled.
Power And Control System Of A Hydraulic Anchoring Drill Rig
A hydraulic anchoring drill rig uses a hydraulic system to control drilling speed and torque.
Main advantages include:
- Smooth operation
- Strong drilling power
- Easy control for operators
Hydraulic systems are suitable for hard rock and mixed ground.
Adaptability To Different Ground Conditions
The Anchoring Drilling Rig can work in:
- Soft soil
- Hard rock
- Mixed soil and rock layers
By changing tools and settings, it adapts to many project conditions.
Key Features Buyers Care About
Drilling Depth And Diameter Range
Buyers often check:
- Maximum drilling depth
- Supported hole diameters
These factors decide what type of anchors the rig can install.
Mobility And Structure Design
Tracked chassis offers:
- Better stability on rough ground
- Easy movement on slopes
- Strong site adaptability
A compact structure also helps in narrow work areas.
Operation Efficiency And Safety
Important safety and efficiency features include:
- Simple control system
- Stable drilling mast
- Protective design for operators
Easy operation reduces training time and mistakes.
Equipment Configuration Options
Hydraulic System Vs Mechanical System
Buyers may choose between:
- Hydraulic systems for strong power and smooth control
- Mechanical systems for simple and light-duty work
Hydraulic systems are more common in anchoring projects.
Chassis And Mobility Options
Available options include:
- Tracked chassis for uneven ground
- Wheel-mounted chassis for flat sites
The choice depends on job site conditions.
Tools And Accessories
Optional tools may include:
- Different drill bits
- Drill rods of various lengths
- Flushing or dust control systems
These tools improve working efficiency.
Situations Where An Anchoring Drilling Rig Is Not Suitable
An Anchoring Drilling Rig is not the best solution in all cases.
It may not be suitable when:
- The ground is extremely soft and unstable
- Only very shallow holes are needed
- The project size is too small for specialized equipment
In such cases, lighter drilling tools or manual solutions may be more economical.
How To Choose The Right Anchoring Drilling Rig
Choose Based On Project Type
Buyers should consider:
- Ground condition
- Required drilling depth
- Working environment
Different projects need different rig configurations.
Balance Cost And Performance
A higher price does not always mean better results. Buyers should focus on:
- Actual project needs
- Equipment reliability
- Maintenance cost
The right balance improves return on investment.
Consider Long-Term Operation Factors
Long-term factors include:
- Spare parts availability
- Ease of maintenance
- Operator training requirements
These factors affect total operating cost over time.
Frequently Asked Questions
Q: Can one Anchoring Drilling Rig handle different projects?
A: Yes, with proper tools and settings, it can adapt to various anchoring tasks.
Q: Is operator training difficult?
A: No, basic training is enough for most operators.
Q: Can the rig work in hard rock?
A: Yes, especially hydraulic models designed for rock drilling.

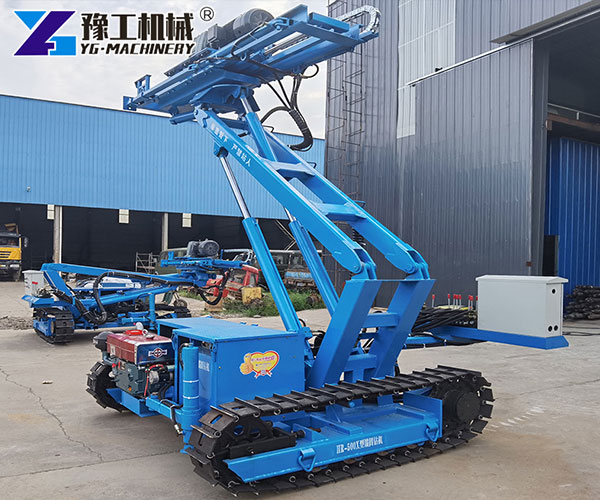

Anchoring Drilling Rig Manufacturer – YG Machinery
YG Machinery is an experienced manufacturer of anchoring and drilling equipment. The company focuses on stable design, practical configuration, and export-oriented quality control. With years of production and project experience, YG Machinery provides reliable machines and technical support for global construction projects.
