The Unmatched Value of the 5 Ton Spider Crane
The modern construction world constantly demands more power in smaller packages. That is exactly why the 5 Ton Spider Crane has become an essential piece of equipment. Unlike traditional, large mobile cranes, this machine delivers heavy-duty lifting capacity while maintaining an incredibly small footprint.
Here’s why a 5 Ton Spider Crane is the smart choice:
- Compact Lifting Solutions: It can access areas where a standard crane simply cannot go, such as interiors, upper floors, or cluttered yards.
- Restricted Access Mastery: The crane’s design allows it to pass through standard doorways or narrow alleys before deploying its stabilizers for maximum stability.
- Superior Maneuverability: Its tracked base makes it easy to navigate uneven terrain and tight corners on job sites.
This unique blend of size and strength makes the 5 Ton Spider Crane the perfect solution for complex lifting challenges.
Core Performance Specs of a 5t Mini Crane for Sale
When considering a 5t mini crane for sale, the technical specifications determine its true potential. Our model is engineered for performance, providing a massive 5-ton lifting capacity housed in a highly efficient body.
Key performance details of our 5 Ton Spider Crane:
| Model | YG-5 | |
| Specification | 5t | |
| Maximum working radius | 14m 0.5t | |
| Maximum above-ground head | 16.8m | |
| Winch device | Hook Speed | 12m/min(4 rope) |
| Rope diameter | 11mm 80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure |
| Boom Length/Time | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0 ~78 /13sec |
| Slew system | Slew Angle/Speed | 0-360 continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | |
| Grade Ability | (25 )36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 5000*1500*1900 |
| Total weight(kg) | 6200 | |
These specifications ensure the crane handles heavy loads with stability and precision, greatly improving site efficiency.
In addition, we also provide 3-ton spider crane for your selection.
Applications for Your Mini Crawler Crane
The versatility of the mini crawler crane is perhaps its greatest strength. It is not limited to one type of job; instead, it is built to perform in diverse and challenging environments where other machinery fails.
The crane is essential for:

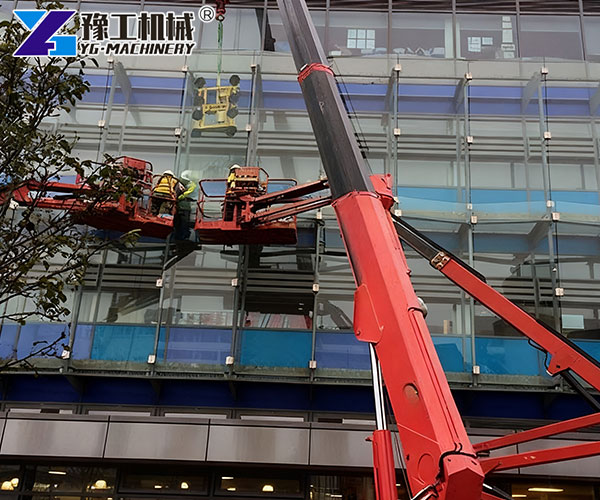

- Glass Installation: Safely setting large, heavy glass panels and facades.
- Structural Steel Erection: Lifting and placing beams inside buildings or on roof structures.
- Equipment Placement: Moving heavy machinery within factories or plants during maintenance.

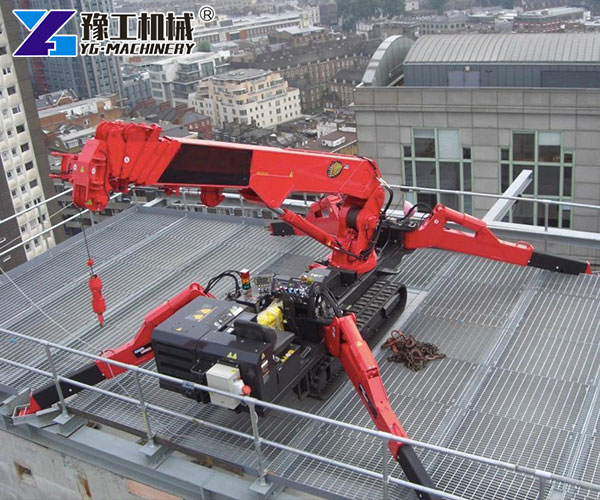

- Roof and Attic Work: Ideal for hoisting materials to restricted elevated areas.
- Tunnel and Underground Projects: Its size allows it to operate effectively in enclosed spaces.
The machine’s ability to operate where space is limited makes it an invaluable asset for specialized contracting work.
Smart Features of Our Compact Spider Crane
Safety and ease of operation are non-negotiable for a professional compact spider crane. Our design integrates modern technology to ensure maximum operational security and efficiency for every lift.
Important features include:
- Advanced Safety System (LMI): A Load Moment Indicator system constantly monitors the load to prevent overloading and tipping.

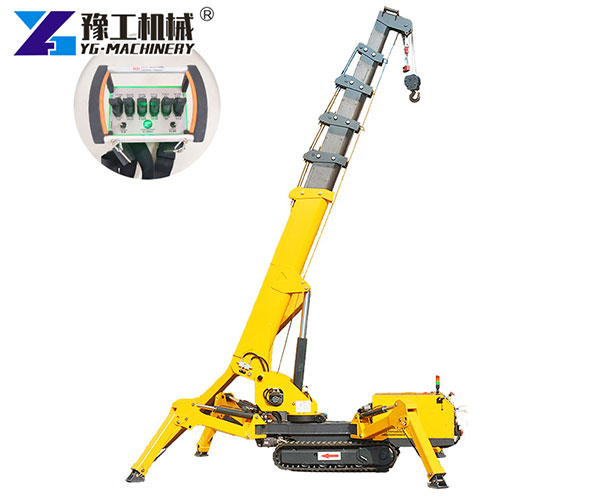

- Precision Control: Comes standard with a wireless remote control for the operator to stand at a safe distance and view the load clearly.
- Automatic Shut-off: Safety sensors and emergency stop buttons are positioned for immediate access.
- Flexible Power Options: Choose between Diesel, pure Electric power, or a Dual-Power hybrid system, depending on whether you work indoors or outdoors.
- Multi-Angle Outriggers: Stabilizers adjust individually to secure the crane safely on uneven or sloped ground.
Calculating Your Return on Investment (ROI)
Investing in a high-quality 5 Ton Spider Crane is a strategic business decision that pays for itself quickly. The initial cost is offset by significant savings and increased productivity on every project.
How the crane boosts your ROI:
- Reduced Labor Costs: One operator and one machine can replace a crew using manual lifting gear.
- Faster Project Completion: Quick setup and lifting speed drastically reduce project timelines.

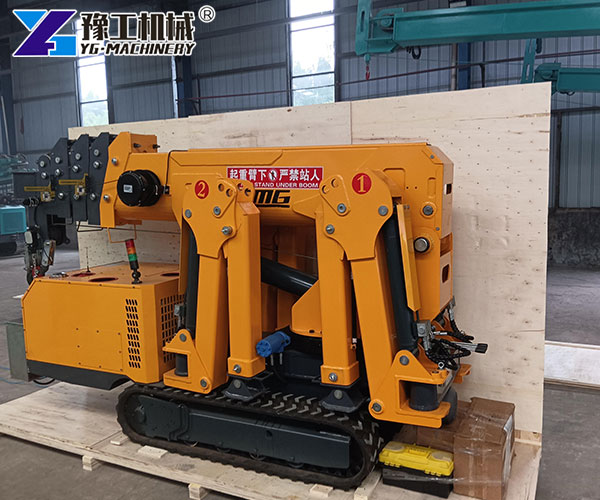

- Lower Transportation Fees: The compact size means cheaper and easier transport to and from job sites compared to large cranes.
- Accept More Contracts: The ability to handle “restricted access” jobs opens your business to a new, profitable market segment.
This machine is an investment in your company’s efficiency and competitive edge.
Ready to Lift? Get Your Factory Price Today
Are you ready to bring the power and precision of the 5 Ton Spider Crane to your job site? As a direct manufacturer, YG offers competitive factory pricing and customized solutions tailored to your specific project needs.
Contact our sales team now to:
- Request a detailed quote and current pricing.
- Schedule a live product demonstration.
- Discuss the best power configuration (Electric or Diesel) for your operations.
Contact us to get special offer now! WhatsApp/WeChat 008613837159132
